DIY Dash Cam Installation: Do It Once, Do It Right

Setting up a dash cam shouldn’t be a weekend killer. If you’ve ever built your own PC, managed cable routing in a mid-tower case, or aren't afraid of a multimeter, you already have the "logic" required for a professional grade install. Hardwiring a dash cam is essentially just adding a new, fused peripheral to your vehicle’s power supply.

With a few basics and the right approach, most DIYers can finish a clean installation in a couple of hours. Below, we’ve translated manufacturer advice into a practical playbook - blending insights from everything we've learned both onsite and in manuals.

Why It Matters: The "Pro" Mentality

A mediocre install has dangling leads and "why didn’t it record?" moments. A pro-level install provides:

Reliable Parking Mode: Ability to capture hits-and-runs while you're at the shops.
Legal Compliance: In Australia, anything on the windscreen must not block the driver's view. The "Sweet Spot" is high, central, and tucked behind the rear-view mirror or off to the passenger side of the mirror shroud.

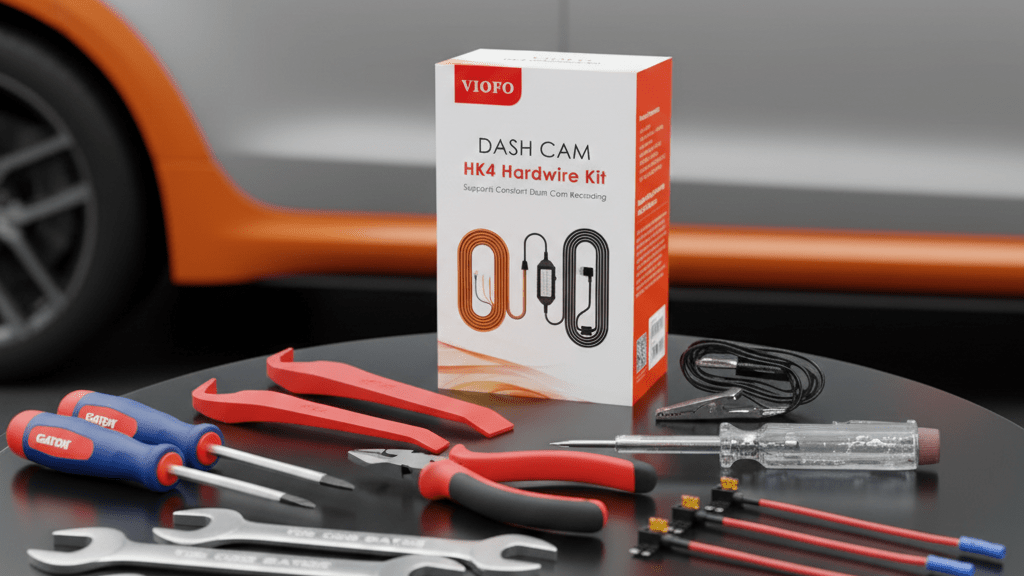

Phase 1: The Component List (Build Your Kit)

Before you crack a single trim panel, gather your "Build Kit." Thinking ahead here prevents the "trip of shame" back to AutoBarn or Supercheap to pick up additional hardware.

The Essentials

Your Chosen Dash Camera: We recommend buying from these great guys over at The Dash Cam Guys (ahha)
Manufacturer Compatible Memory Card: We cannot stress this enough! Do not use a standard "Extreme" card. You need a V30/U3 High Endurance card (128GB–256GB) designed for write cycles and can tolerate the aussie heat on the windshield. Drone SD Cards will not suit here! Call us if you need any recommendations on this.
Compatible Hardwire Kit: Usually includes a 3-wire loom (ACC, BATT, and GND).

The Tools

Circuit Tester or Multimeter: To probe the fuse box.
Plastic Trim Tools: For prying panels without marring the plastic.
Add-a-Fuse (Fuse Taps): These allow you to tap into a circuit without cutting factory wires. Ensure you get the right size for your car (ATO, Mini, Low-Profile Mini, or Micro2).
Cleaning Prep: Isopropyl alcohol - don't skip this or you'll risk your dash camera adhesive failing over time and falling off your windshield

Phase 2: Mounting & Placement

Placement isn't just about the view; it's about the law too. In Victoria and across Australia, accessories must not obstruct forward visibility. aka Do not place your camera on the drivers side of the windshield.

Clean the Glass: Use your Isopropyl Alcohol here. Even a tiny bit of finger oil will cause the 3M adhesive to fail under the heat of the sun.
The Horizon Rule: Position the camera so the horizon is in the top third of the frame. Include a sliver of your bonnet at the bottom. This provides a fixed reference point for insurance companies to determine speed and distance.
Wiper Path: Ensure the lens is within the "swept area" of your wipers. There is no point in having a dash cam if all it records is a wall of rain during a storm.
Rear Camera: Mount high and centre. Avoid the defroster lines; sticking the adhesive directly onto a heating element can damage it if you ever need to remove the camera.

Phase 3: The Deep-Dive (Hardwiring)

This is where we move from "Plug and Play" to "Integrated." Hardwiring uses a 3-wire system to manage power.

1. Locate the Fuse Box

Check your vehicles owner’s manual. Common locations include under the steering wheel, behind the glovebox, or in the kick panels. Most cars have multiple boxes; use the one closest to your A-pillar routing path.

2. Identify Your Circuits

Using your circuit tester (ground the clip to a bare metal bolt), find two specific fuses:

Constant (BATT/Always On): This fuse has power even when the key is out and the car is turned off and locked. (e.g., usually Interior lights, Hazard lights).
Switched (ACC/Ignition): This fuse only has power when the car is in "Accessory" mode or running. (e.g., Radio, Cigarette lighter).

CRITICAL: Avoid safety-critical fuses like Airbags (SRS), ABS, or Engine Management. If you mess with these, you could trigger a fault code or disable a safety system.

3. Installing the Add-a-Fuse

An Add-a-Fuse has two slots.

Bottom Slot: Put the original fuse you pulled from the car here.
Top Slot: Put the new fuse for the dash cam here (usually 2A - 5A).

Note: If the camera doesn't turn on, try flipping the Add-a-Fuse 180 degrees. Most fuse slots are directional (one side is "hot," the other goes to the load).

4. The Ground (GND)

Find a factory bolt that goes directly into the metal frame of the car. If the bolt is painted or galvanized, the connection might be weak. Instead scrape a tiny bit of paint away or find a "clean" stud for a solid ground (or use a tek screw to make a new grounding point!)

Phase 4: Cable Management for The "Factory" Finish

If you see a wire, the job isn't done.

Headliner: Tuck the wire into the gap between the glass and the roof lining.
A-Pillar Airbags: This is vital. Most modern cars have airbags in the A-pillar. Never run your cable across the airbag. Route it behind the airbag or follow the existing factory wiring loom, securing it with zip ties every 200mm or so.
The Service Loop: Leave about 5-10cm of slack near the camera. This allows you to tilt the mount or remove the camera for maintenance without straining the internal ports.
Rear Cable Routing: In hatchbacks or SUVs, run the cable through the rubber weather boot between the car body and the tailgate. This keeps the install waterproof and professional. Just make sure to install it back correctly so you don't get water ingress into your roof lining when it rains.

Phase 5: Final Calibration & Settings

Don't just set it and forget it. Review your footage after the first drive.

Low-Voltage Cutoff: If your hardwire kit has a switch, set it to 12.2V or higher. This ensures your car always has enough "juice" to start (for most Petrol or Diesel vehicles), if you have a new EV or Hybrid please refer to our 'Will a Dash Cam Drain my EV Battery? blog post for the most accurate information on setting up for Parking Mode.
Loop Recording: Set to 1 minute clips. It makes finding specific events much easier.
G-Sensor Sensitivity (Normal): Turn this down slightly - medium or low. Australian potholes can sometimes trigger "Emergency Lock," which will eventually fill your SD card with protected files that won't overwrite.
G-Sensor Sensitivity (Parked): Crank this up to High, it'll try to record every little bump when your parked. Just be mindful the higher this setting will also trigger false positives such as you closing the boot after a woolworths shop.
Motion Sensitivity (Parked): We personally have our motion set to either low, or off. Simply due to not wanting to record people walking in the distance, trees swaying in the wind, or cars driving past. We're only interested if our vehicle is hit when parked. A little bit of personal preference here goes a long way

Dash Cam Guys Perspective

We’ve seen thousands of installs. The biggest mistake people make? The "Crimp and Tug." When you connect your wires to the Add-a-Fuse, use proper crimping pliers and give the wire a firm tug. If it slides out, that’s a hazard or a future power failure waiting to happen. Take your time. Install with a little love and pride. It's your ride!

Also, format your SD card monthly. Even the best cards can get corrupted over thousands of write cycles. Taking 15 seconds to format in-camera ensures the footage is there when you actually need it for an insurance claim.

Next Steps

Feeling confident? Start by mapping your fuse box. If the idea of prying off airbag-laden trim panels makes you sweat, don't risk it.
