VIOFO T340 3CH 4K+2K+2K HDR Dash Cam - Built-In IR Cabin Cam, STARVIS 2, Wi-Fi 6

Cover the Cabin Without Mounting a Third Camera. The VIOFO T340 3CH records 4K front, 2K cabin and 2K rear, with the infrared cabin lens built into the front body

Here is the catch with most three-channel dash cams: the third channel turns up as a third camera, on its own cable, that you have to find a home for near the mirror. Another lens on the windscreen, another wire to hide, another thing a passenger asks about. The cabin view is worth having. The hardware normally needed to get it is not.

Trusted AU store: We're an authorised Australian reseller, shipping from Melbourne within 24 hours^*. You get an 18-month warranty with no product registration required, local technical support, and our 30-Day No-Worries returns.

Who This Isn't For: The cabin lens is built into the main unit, so it films the interior from the windscreen and cannot be aimed or repositioned. If you drive a van or minibus and need the interior camera further back, choose a separate cabin camera model from our 3-channel dash cam range. The T340 3CH suits cars, SUVs, utes, taxis and rideshare where the cabin view starts at the mirror.

DCG Highlights

What We Love

• The infrared cabin camera lives inside the front body, so a three-channel install means two pieces on the glass instead of three, and one cable to the back of the car
• A 210 degree fisheye on the cabin channel, wide enough to take in both front seats and both side windows at once, which is where kerbside disputes actually happen

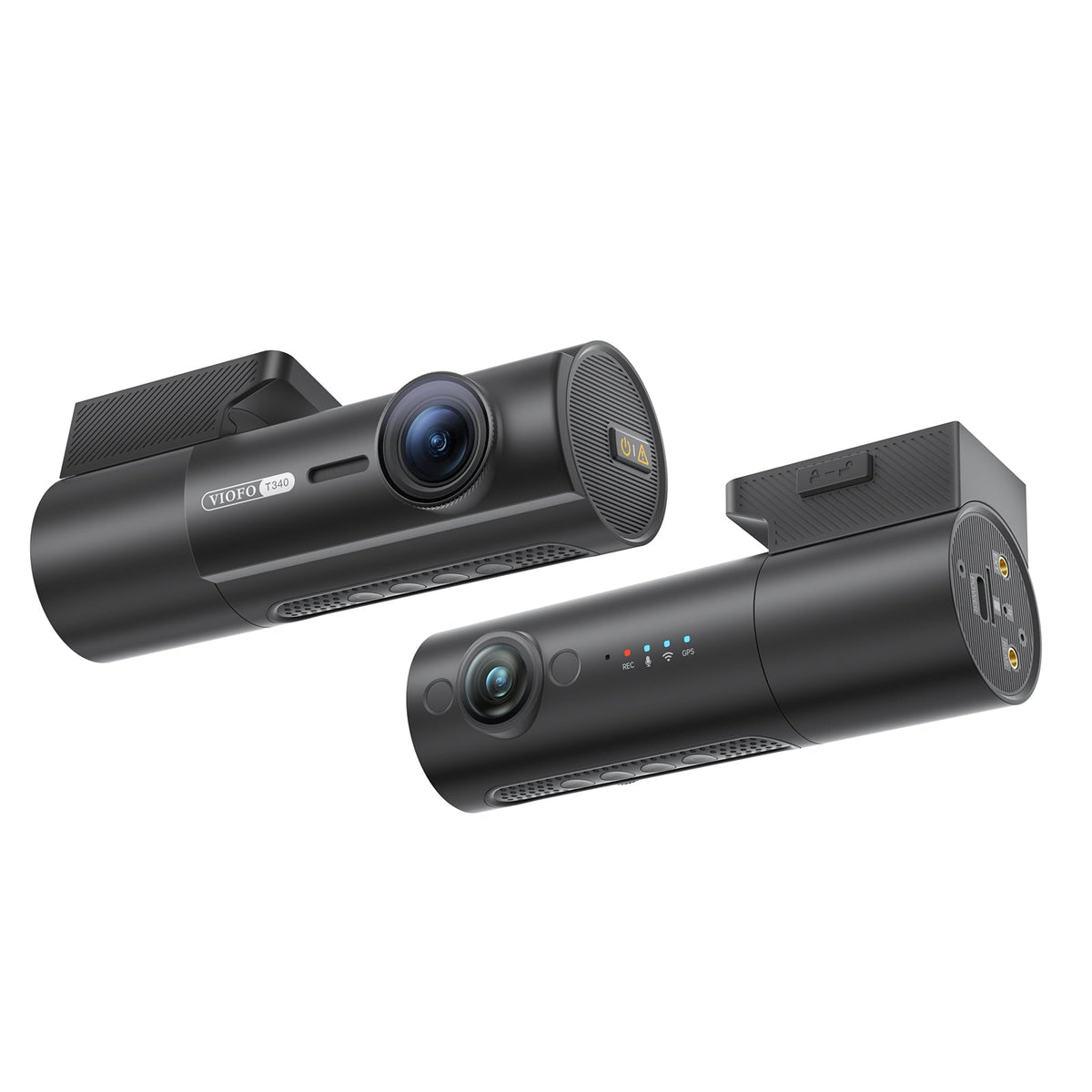

• Four infrared LEDs on the cabin lens, so it records in a completely dark car without switching the interior light on
• Sony STARVIS 2 sensors front and rear, IMX678 and IMX675, with HDR on all three channels to hold a number plate readable against low sun or headlights
• The rear camera mount rotates through 360 degrees, which matters on a steeply raked rear screen where a fixed mount records half sky
• Dual-band Wi-Fi 6 on 2.4 GHz and 5 GHz, so a 4K clip lands on your phone in the car park rather than after you get home
• Channels can be merged into a single video file, so an insurer gets one clip showing all three views in sync instead of three files and an explanation

Good to Know

• Parking mode of any kind needs the VIOFO HK6-F hardwire kit, bought separately. The car charger in the box only powers the camera while the engine is running, and cut-off voltage protection comes from the HK6-F rather than the camera.
• No memory card is included. VIOFO's own packing list states the microSD card is sold separately, so order one with the camera. It takes a card up to 512 GB, and three channels at 4K and 2K fill one quickly.
• The cabin channel uses an OmniVision OS04J10 sensor, not a Sony STARVIS 2. The front and rear channels are the STARVIS 2 ones, so the cabin footage is the softest of the three in low light even with the infrared LEDs on.

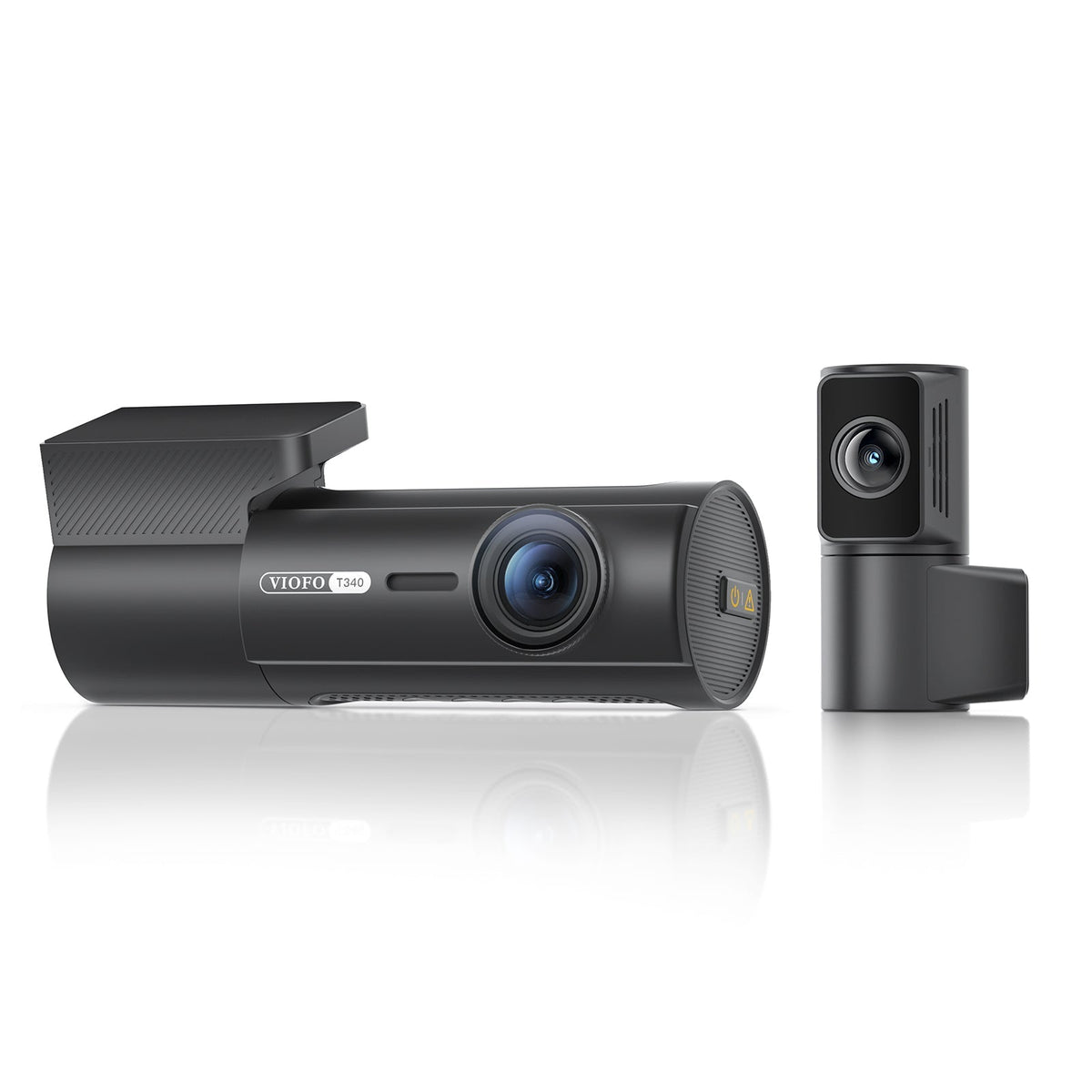

• There is no screen anywhere on this camera. Setup, playback and settings all happen in the VIOFO Dashcam app over Wi-Fi.

Why a Built-In Cabin Lens Changes the Install, Not Just the Parts Count

A separate cabin camera is the part of a three-channel install that goes wrong most often. On a conventional kit the interior camera is a third module on a short cable, usually about a metre, so it has to live within arm's reach of the front camera anyway. You end up with two bodies side by side on the windscreen, a visible run of cable between them, and a mounting decision that has to clear the mirror, the rain sensor and the driver's sightline at once.

The VIOFO T340 3CH puts the infrared cabin lens in the same housing as the front camera, pointing back through a 210 degree fisheye. The install becomes a two-piece job: the main unit behind the mirror, the rear camera on the back glass, one cable between them. The trade-off is worth stating plainly. You give up the ability to aim the cabin view, because a built-in lens films from wherever the front camera has to sit, and you take the framing that gives you.

Top Benefits

• One less thing on the glass: the cabin camera is built into the front body, so three channels take two mounts and one cable run.
• Evidence from inside, in the dark: a 210 degree infrared fisheye covers both front seats and both side windows with the cabin light off.
• Sharper plates after dark: Sony STARVIS 2 sensors front and rear with HDR on every channel, so detail survives headlights and deep shadow.
• Aim the rear properly: the 360 degree adjustable mount squares the picture up on a raked rear screen instead of filling the frame with sky.
• One clip, not three: merged multi-channel files give an insurer a single synchronised video with no editing at your end.
• Footage off the card in minutes: dual-band Wi-Fi 6 sends 4K files to the VIOFO app without pulling the card.
• Parked cover you can tune: five parking modes, from hybrid recording down to low-power impact detection, so you set the balance between coverage and battery draw.

How It Installs

1. Stick the main unit behind the rearview mirror using the supplied static sticker and adhesive pad, then clip the magnetic CPL-700 filter onto the front lens. Check the cabin lens is looking back into the vehicle before you commit the pad.
2. Run the 6 metre rear cable down the A-pillar, along the headlining and back to the rear window, tucking it into the trim with the removal tool in the box. Fit the rear camera to the rear glass and rotate the mount until the horizon is level.
3. Power it from the supplied 3.5 metre car charger, or from a VIOFO HK6-F hardwire kit if you want the parking modes.
4. Fit the infrared cabin camera cover and the tamper-resistant cover with the four screws and the supplied hex key.
5. Connect the VIOFO Dashcam app over Wi-Fi to set the resolution combination, parking mode and G-sensor sensitivity.

Allow around an hour for a tidy do-it-yourself run on the car charger, and longer if you are hardwiring. It does involve easing trim panels off to hide the cabling, so use the trim tool rather than a screwdriver and hope.

What's in the Box

• Main unit, front and infrared cabin cameras in one housing x 1
• Rear camera x 1
• Car charger x 1 (3.5 m)
• Rear camera cable x 1 (6 m)
• Type-C data cable x 1 (0.5 m)
• Front camera CPL filter x 1 (CPL-700)
• Infrared cabin camera cover x 1
• Tamper-resistant cover x 1, with 4 screws and a hex key
• Trim removal tool x 1
• Spare mount sticky pads x 2
• Windscreen static stickers x 3
• Warning sticker x 1, user manual x 1, quick start guide x 1, after-sales service card x 1
• Not included: microSD card, HK6-F hardwire kit, BTR200 Bluetooth remote, CPL-600 rear filter, and the BP100 or BP60 battery pack

Fitment and Compatibility

• Vehicles: any car, SUV, ute, van or taxi with a windscreen that will take a behind-the-mirror mount. Nothing about the camera is make or model specific.
• Power: USB-C. The supplied car charger runs from a 12V socket and carries a second fast-charge port for a phone. The HK6-F kit covers 12V and 24V systems.
• Parking mode: requires the VIOFO HK6-F hardwire kit, which is also what provides cut-off voltage protection so the camera stops before it flattens your starter battery.
• Battery packs: works with the VIOFO BP100 and BP60, which run parking mode from their own cells and report charge level over Bluetooth.
• Replacement rear camera: the VIOFO RC420, the same module supplied in the box. It takes the CPL-600 filter if you want less glare through tinted rear glass.
• Remote: VIOFO BTR200 Bluetooth remote, sold separately.
• Not compatible with: the HK6, HK5, HK4 and HK3-C hardwire kits. The T330 and T340 need the HK6-F specifically, so an older VIOFO kit will not carry over. We stock the 6 metre rear cable only, so if your vehicle needs a longer run to the rear glass, contact us on our contact page before you order.
• Australian fitment: right-hand-drive agnostic. The mount is universal and the 210 degree cabin framing is symmetrical, so it covers driver and passenger the same either way round.

Add the Cabin Channel Today

Add the VIOFO T340 3CH to your cart and we will have it out of Melbourne within 24 hours^*. Pick up a card from our memory card range at the same time, because one is not supplied, and add a hardwire kit if you want the parking modes to work. Backed by our 30-Day No-Worries returns. We do not install cameras ourselves, but you can find someone local in our directory of independent installers. They are independent businesses, so you book and contract directly with them.

Last updated: September 2026

---

VIOFO's Own Product Description

Below is VIOFO's own description of the T340 3CH, reproduced with their imagery and video so you can read the manufacturer's version alongside ours. Where their wording and our specifications differ, the figures in our detailed specifications are the ones we can trace to the spec sheet.

T340 3CH: Catch the Highlights

4K + 2K + 2K. Dual Sony STARVIS 2 Sensors. HDR Clear License Plate Capture. Power-Saving Parking Mode. Wi-Fi 6 Connectivity. Instant Emergency Lock. Magnetic Front Cam CPL. Anti-Tamper Design.

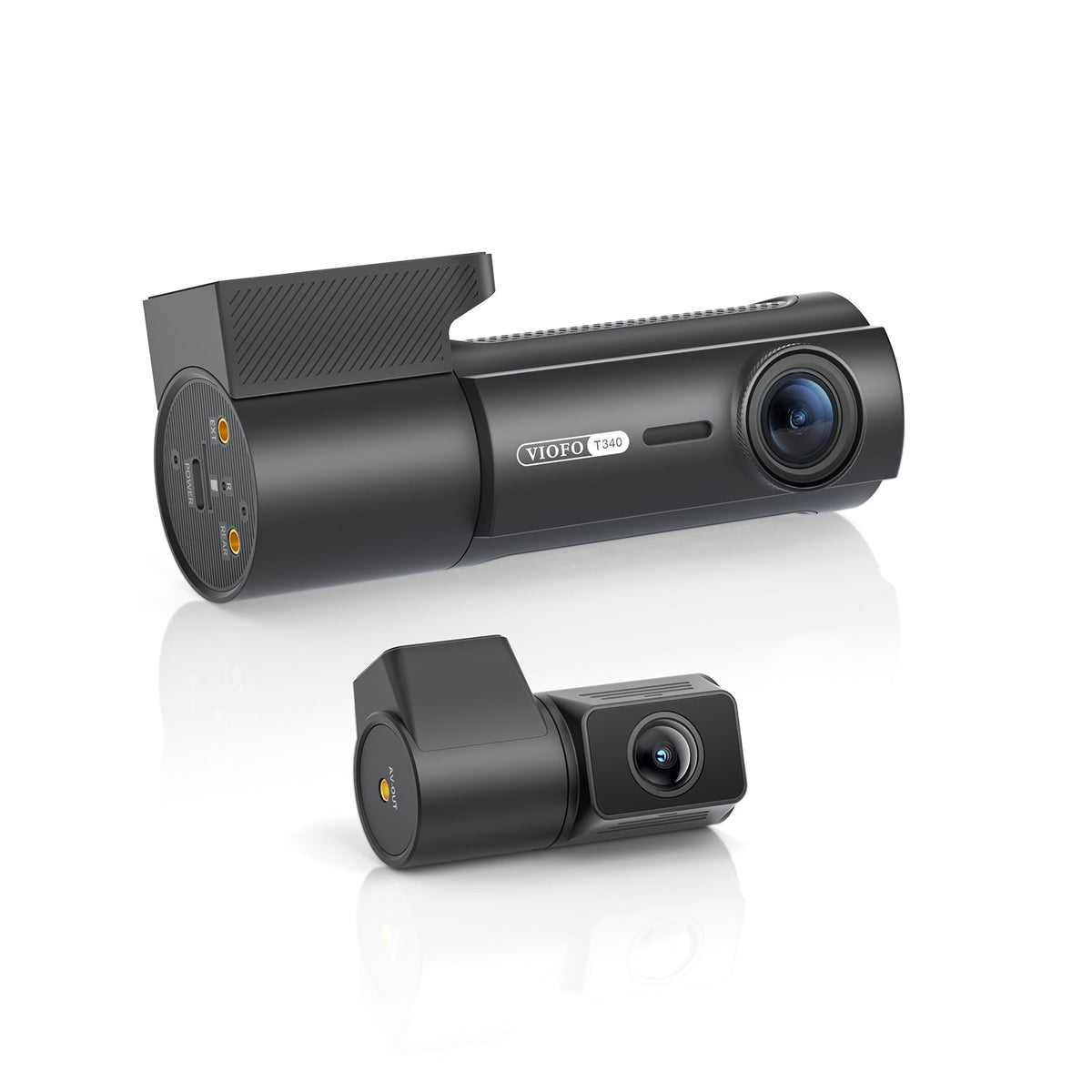

Meet the 3-Channel System

4K Front Camera. 1/1.8 inch image sensor, Sony STARVIS 2, HDR supported.

2K Cabin Camera. 1/1.88 inch image sensor, ultra wide 210 degree view, infrared night vision.

2K Rear Camera. 1/2.8 inch image sensor, Sony STARVIS 2, 360 degree adjustable mount.

Every Perspective, Perfectly Synced

Front, inside, and behind, every key perspective recorded in sync. Powered by a 3-channel camera system with 4K Front, 2K Cabin, and 2K Rear recording, it delivers a complete view of every journey for greater confidence on the road.

True 4K clarity, front and center.

The front camera records in true 4K resolution, preserving fine road details and providing clear evidence when it matters most.

Capture inside and out.

Record the cabin in crisp 2K clarity, capturing greater detail of interior activity and side areas. Four infrared LEDs improve visibility in low-light conditions, while the 210 degree fisheye view covers the full cabin and side areas.

Clear awareness behind you.

The 2K rear camera delivers stable footage of the road behind with balanced exposure and refined detail. From highways to night driving, traffic and critical moments stay consistently clear.

Dual STARVIS 2 Sensors: Low-Light Visibility, Superior Detail

Readable Plates, Day or Night. With Sony STARVIS 2 sensors and multi-channel HDR, the T340 adapts to extreme lighting changes effortlessly. From direct headlights to blinding backlighting, key details and license plates remain sharp and readable.

Always Clear, Even in the Dark. Equipped with Sony STARVIS 2 sensors, the T340 offers a wider dynamic range and superior low-light sensitivity. Drive confidently knowing it captures sharp license plates and roadside details, even on pitch-black roads.

Exceptional Clarity, Stunning Detail

See everything clearly in true 4K at 30 fps with HDR. Whether it's a distant license plate or fast-moving vehicles, the T340 ensures every frame serves as solid proof when it matters most.

Infrared Fisheye Cabin Cam: Cabin to Side, All in Sight

Capture the entire cabin and side window views simultaneously in sharp 2K detail. The 210 degree ultra-wide lens, along with the built-in IR LEDs, guarantees comprehensive protection for your cabin, day or night, perfect for both rideshare drivers and families.

Sharp Eyes on the Rear (360 Degree Adjustable): See More Behind, Track What Matters

Keep an eye on what's behind you in clear 2K resolution. With HDR technology, tricky glare and deep shadows stay balanced. You'll always have the solid evidence you need to stay protected against tailgaters and rear-end incidents.

Faster Transfers, Instant Downloads

Experience faster, more stable transfer with dual-band (2.4 GHz and 5 GHz) Wi-Fi 6 technology. Use the VIOFO Dashcam App to preview live footage, update settings, and save videos to your phone in seconds without cables.

Say the Word, Stay in Control

Focus on driving while the T340 handles the rest. Easily lock footage or take snapshots using simple voice commands in multiple languages. Proactive voice alerts keep you informed of memory card errors or setting changes for total peace of mind on the road. Note: supports English, Chinese (Mandarin), Russian, and Japanese for voice control.

Precise Tracking, Powerful Evidence

From city drives to cross-country trips, the T340 keeps every mile documented. Quad-mode satellite coverage (GPS, BeiDou, Galileo, and GLONASS) provides clear, reliable records of your speed, location, and timestamps on every video playback.

One Single File, Instant Sharing

Merge multiple camera feeds into a single video file for full-coverage playback. The T340 makes it easy to generate multi-perspective footage that's ready to review, export, or share instantly, with no editing required.

Parking Mode: 24/7 Peace of Mind

Note: to use parking mode, a VIOFO HK6-F hardwire kit is required and sold separately. Cut-off voltage is only available with the VIOFO HK6-F hardwire kit.

Capture More, Consume Less. Hybrid parking starts in time-lapse, low-bitrate or event-detection recording, then switches to impact detection once your set cut-off time or battery voltage is reached.

Ultra-Low Draw, Instant Guard. Very low power draw makes this mode ideal for long parking sessions. The T340 waits in standby with impact detection always on, waking within 2 seconds to record a one-minute clip.

Set Zones, Save Power. Define trusted locations, your home garage or workplace, and the T340 shuts down there instead of entering parking mode. Enable Low Power Impact Recording to keep impact detection on inside those zones.

Longer Parking, Zero Battery Drain

Pair with the VIOFO BP100 or BP60 battery pack (sold separately) and parking mode runs on the battery pack's own power, for hours longer, with your vehicle battery untouched.

Press It, Protect It

One touch is all it takes. Alongside automatic G-sensor impact locking, the side button lets you instantly secure key moments whenever you want. Footage of road incidents, hit-and-runs, or close calls won't be overwritten easily.

Everything for a Clean Install

Cleaner Installation, Better Protection. Protect your dash cam from unauthorized access. The tamper-resistant cover prevents unauthorized tampering or accidental disconnections while maintaining a clean, professional install.

Slim Design, Neat Installation. Easily tuck the ultra-slim coaxial cables behind car panels for a clean, hidden install. Get high-speed and interference-free performance that keeps your electronics running smoothly.

Two Ports, Double Convenience. Charge two devices at once. Featuring a 30W Type-C fast-charging port and a 15W dash cam port, this car charger includes a soft-glow ring for quick, easy plugging at night. Note: do NOT connect your dash cam to the orange port. It will not power your dash cam.

Made to Fit, Tested to Last

No Glare, No Reflections. Cut through glare with ease. The snap-on magnetic front and optional rear CPL filters reduce windshield reflections and road glare, delivering clear and natural-looking footage.

One Press, Safety Access. Stick the Bluetooth remote anywhere convenient to secure critical footage in one press and configure the side buttons to access your favourite features instantly. Control range: up to 5 metres.

Built to Record, Made to Last. Don't risk dropped frames or missing evidence. Built for constant dash cam recording, VIOFO industrial-grade microSD cards ensure smooth, error-free storage on every journey. For optimal performance, we recommend using a VIOFO microSD card.

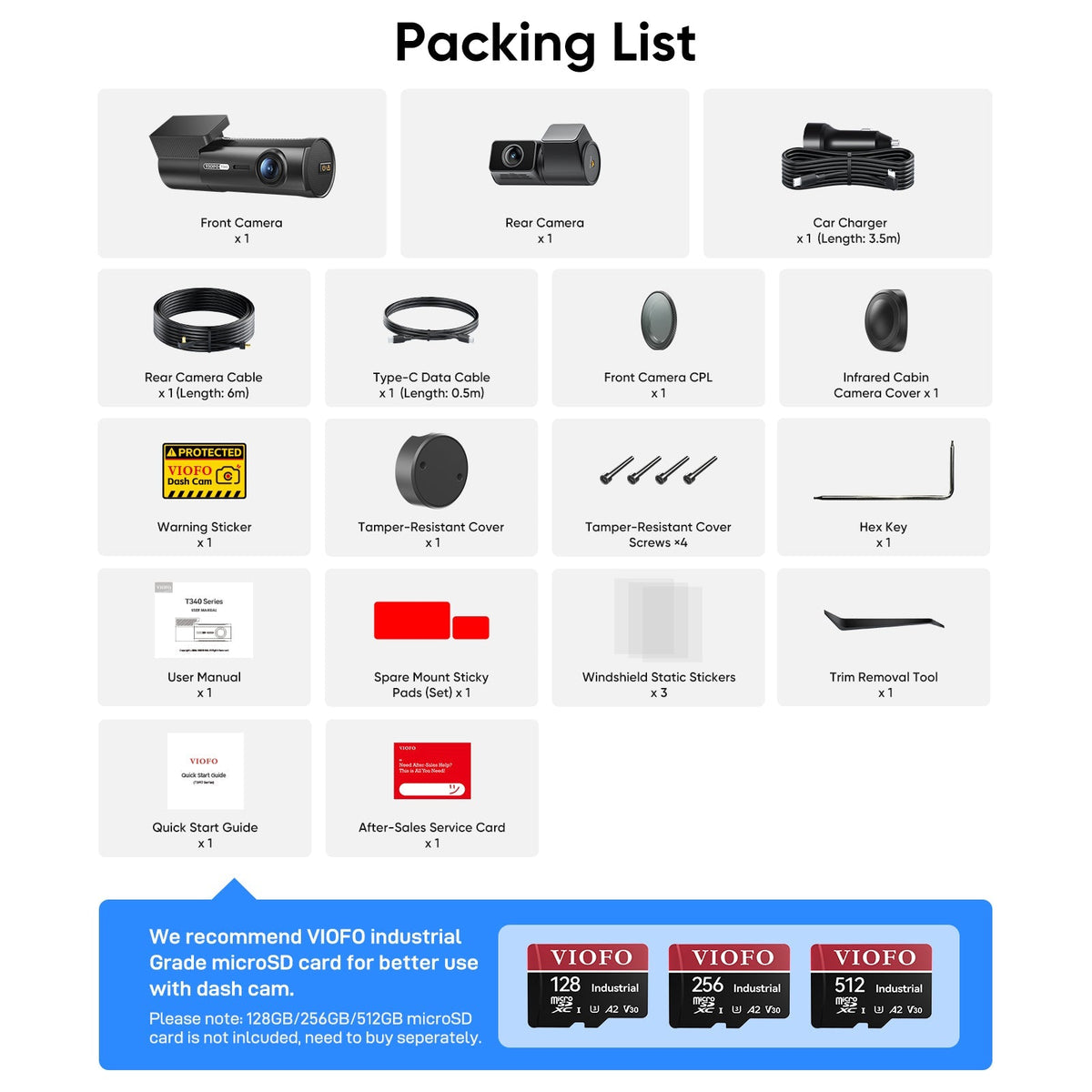

VIOFO's Packing List

Main Unit (Front + Cabin Cameras) x 1, Rear Camera x 1, Car Charger x 1 (Length: 3.5 m), Rear Camera Cable x 1 (Length: 6 m), Type-C Data Cable x 1 (Length: 0.5 m), Front Camera CPL x 1, Infrared Cabin Camera Cover x 1, Tamper-Resistant Cover x 1, Tamper-Resistant Cover Screws x 4, Hex Key x 1, Trim Removal Tool x 1, Spare Mount Sticky Pads x 2, Windshield Static Stickers x 3, Warning Sticker x 1, User Manual x 1, Quick Start Guide x 1, After-Sales Service Card x 1. VIOFO note that the 128GB, 256GB and 512GB microSD cards are not included and need to be bought separately.

VIOFO's Product Information

VIOFO's Frequently Asked Questions

• Which cameras are included with T340 3CH? T340 3CH is a 3-channel (front + cabin + rear) system. The built-in IR cabin camera is part of the main unit.
• What recording resolutions does T340 3CH support? T340 3CH supports 4K + 2K + 2K; 4K 21:9 + 2K + 2K 21:9; 2K + 2K + 2K.
• Which parking recording modes are supported? Hybrid Parking Recording, Low Power Impact Detection, Auto Event Detection, Time-lapse Recording and Low Bitrate Recording are listed in the supplied specification.
• Is a hardwire kit required for parking recording? A compatible VIOFO hardwire kit (HK6-F) is optional and sold separately. A hardwire kit is required when the installation needs parking-mode power.
• Which Wi-Fi bands are supported? Built-in Wi-Fi 6 supports both 2.4 GHz and 5 GHz connections.
• What is the maximum supported microSD card capacity? The supplied specification lists support for an external microSD card up to 512 GB. The card is optional.
• Which CPL filters and Bluetooth remote are supported? Front: CPL-700 included; Rear: CPL-600 optional. Bluetooth is built in and supports the optional BTR200 remote control.

VIOFO T340 Series Dash Cam: 4 Channels. All Covered.
