VIOFO T340WW 4-CH Front + IR Cabin + Dual Waterproof Rear Dash Cam - 4K, STARVIS 2, 8m Cables

Record The Cab And Both Sides Outside At The Same Time. The VIOFO T340WW 4-CH runs a 4K front camera, a built-in 210 degree infrared cabin camera and two 2K waterproof exterior cameras

Here is the problem with a three-channel camera in a work vehicle. You get one spare channel and two jobs for it. Point it at the cab and you give up the exterior angle a canopy or a trailer blocks. Point it outside and a passenger dispute comes down to your word against theirs. Most drivers have been solving that with two recorders, two cards and two sets of timestamps that never quite line up.

Trusted AU store: We're an authorised Australian reseller, shipping from Melbourne within 24 hours^*. You get an 18-month warranty with no product registration required, local technical support, and our 30-Day No-Worries returns.

Who This Isn't For: The cabin camera is built into the body and films from behind the windscreen, with no way to move it. In a high truck cab or a van with a bulkhead, that fixed position may not show what you need. The VIOFO A329S 3-CH puts its cabin camera on a separate 1m lead you can place yourself. The T340WW suits utes, vans and trucks needing all four angles on one recorder.

Check Before You Order: Measure Both Cable Runs

Both exterior cables are a fixed length and cannot be extended later. VIOFO markets this SKU as 8m plus 8m; each cable itself measures 7.5m, with the balance taken up by the camera lead and the plug. Run a tape from behind your mirror, down the A-pillar, along the sill and out to each mounting point before you order. On a dual cab ute, 7.5m reaches the tailgate comfortably. On a long trailer, a horse float or a 6m van, measure both runs, because they may not be the same and longer pairs are separate SKUs we do not stock.

DCG Highlights

What We Love

• Four channels running off one recorder and one card, so the cabin, the road ahead and both exterior angles share a single timestamp and a single GPS track
• The 210 degree fisheye cabin camera with four infrared LEDs is built into the body, covering both side windows as well as the seats without adding another cable to route
• Sony STARVIS 2 IMX678 up front and IMX675 in both waterproof cameras, which is what keeps a number plate readable under a single trailer light at night
• Both exterior cameras are IP67 rated and screw-mounted, so they can live on a canopy, a bar or a trailer frame instead of behind glass that shows you plywood
• HDR on all four channels at once rather than the front alone, which is what stops a plate blowing out white under oncoming headlights
• Supercapacitor instead of a lithium battery, which is the part that usually gives up first in a vehicle parked through an Australian summer
• The CPL-700 magnetic front filter and the tamper-resistant cover are both in the box rather than sold separately
• Four-channel multiplex merges every view into one file, so an insurer receives a single video instead of four they have to line up themselves

Good to Know

• Parking mode of any kind needs the VIOFO HK6-F hardwire kit, bought separately. Hybrid recording and cut-off voltage protection only work with it. See our hardwire kits.
• No memory card is included. The camera takes a microSD up to 512 GB, and four channels of HDR video fill a small card quickly.
• The front camera records 4K at 30 fps, not 60 fps. Running the fourth channel is what costs you the frame rate.
• Both exterior cameras mount with four screws each and a sealed cable entry. This is a drill and route job, not a stick-it-to-the-glass job.

Why A Built-In Cabin Camera Changes The Install

Most multi-channel dash cams put the interior lens in a separate module on a lead, which you stick to the windscreen or the headlining and wire back to the recorder. That buys you placement freedom and costs you a cable, a connector and one more thing to work loose in a vehicle that vibrates for a living. The VIOFO T340WW takes the other path. The cabin lens and its four infrared LEDs sit inside the front body, looking back through a 210 degree fisheye wide enough to reach both side windows. There is no extra cable and no extra connector, so fitting the interior channel costs you nothing beyond fitting the front camera. The trade-off is fixed geometry: wherever the front camera goes, the cabin view goes with it. On a deep windscreen rake or a high cab, that is worth checking before you commit.

Top Benefits

• All four angles, one timeline: Every channel writes to the same card with the same timestamp and GPS track, so an incident inside the cab and one behind the trailer sit in the same file.
• Nothing to route for the interior: The cabin camera is inside the front body, so the interior channel adds no cable, no connector and no extra install time.
• Sees in a dark cab: Four infrared LEDs light the interior without a visible glow, which is what makes a night-time rideshare or fleet recording usable.
• Built for weather: IP67 housings on both exterior cameras handle rain, road spray, dust and a wash at the truck stop.
• Readable plates after dark: Triple Sony STARVIS 2 sensors with HDR on every channel hold detail through headlight glare instead of blowing it out.
• One file to hand over: Four-channel multiplex merges every view into one video, so an insurer gets a single file rather than four.
• Parking cover without a flat battery: Pair it with a dedicated battery pack and parking mode runs off the pack, with the charge left stamped onto the footage.

How It Installs

1. Mount the front camera behind the rear-view mirror on the supplied static sticker and clip on the magnetic CPL-700 filter. The cabin camera is already aimed, so there is nothing to align. Around 15 minutes.
2. Choose both exterior camera positions and drill the mounting holes. Common spots are the tailgate handle recess, the rear of a canopy, a bar or a trailer frame. Seal every hole you make.
3. Route both cables down the A-pillar, along the sill trim and out to each camera. This needs trim removal tools, and the supplied tool covers most clips. Allow 60 to 90 minutes for the pair.
4. Power the front camera from the supplied dual USB-C car charger, or fit the HK6-F hardwire kit to the fuse box if you want parking mode. Format the card in the camera, then check all four views in the VIOFO app before the trim goes back on.

We do not install cameras ourselves, but you can find someone local in our directory of independent installers. They are independent businesses, so you book and contract directly with them.

What Is In The Box

• T340WW main unit, front camera plus built-in IR cabin camera, x 1
• Waterproof exterior cameras x 2
• Waterproof camera cables x 2, 7.5m each
• Dual USB-C car charger x 1, 3.5m lead
• CPL-700 magnetic front polarising filter x 1
• Type-C data cable x 1, 0.5m
• Infrared cabin camera cover x 1
• Tamper-resistant cover x 1, with 4 screws and a hex key
• Waterproof camera screws x 4
• Spare mount adhesive pads, 2 windscreen static stickers, warning sticker, trim removal tool
• Quick start guide, user manual, after-sales service card

Not included: microSD card, HK6-F hardwire kit, BTR200 Bluetooth remote and any battery pack. Pick up a card from our memory card range at the same time, because the camera will not record a thing without one.

Fitment & Compatibility

• Vehicle power: 12V and 24V systems, covering cars, utes, vans, light trucks and heavy vehicles.
• Best suited to: Dual cab utes with canopies or trays, vans with no rear glass, rideshare and fleet vehicles that need the cabin on record, light trucks, horse floats and caravans that stay hitched.
• Mounting surface: Each exterior camera needs a flat, rigid surface that takes four screws and a sealed cable entry. Bodywork, a canopy, a bar or a steel trailer frame all work.
• Replacement cameras: both exterior cameras are the VIOFO RWC400, the same IP67 module supplied in the box, so either can be replaced on its own.
• Accessories: VIOFO BTR200 Bluetooth remote, and the BP100 or BP60 battery packs for parking mode on their own power, all sold separately.
• Storage: microSD up to 512 GB. This model has no external SSD support.
• Parking mode: Requires the VIOFO HK6-F hardwire kit. The HK6 and HK6-A kits are built for other models and will not work here.
• Not compatible with: A separate or relocatable interior camera, which this model does not accept because the cabin lens is built in, and VIOFO A229 or A129 rear cameras and cables, which use different connectors.
• Australian fitment note: Cable lengths are fixed at purchase. If you are unsure whether 7.5m reaches, send us a photo of the vehicle and the two camera positions and we will tell you before you buy.

Cover Every Angle Today

Add the T340WW 4-CH to your cart, and add a VIOFO industrial microSD card and the HK6-F hardwire kit while you are here, because it needs the first to record at all and the second to watch the vehicle while it is parked. Still deciding how many channels you actually need? Our 4-channel dash cam range lays the options out side by side. Ships from Melbourne within 24 hours^*, with local technical support and our 30-Day No-Worries returns.

Last updated: September 2026

---

VIOFO's Own Product Description

Everything above is ours. Everything below this line is VIOFO's own marketing copy, imagery and video for the T340WW 4CH, reproduced here with permission so you can read the manufacturer's version without leaving the page. Punctuation has been normalised to our house style and nothing else has been changed. Where it differs from what we have written above, our copy reflects the Australian variant and the box contents we actually ship.

VIOFO T340WW 4CH 4K+2K+2K+2K HDR Dash Cam with Built-in IR Cabin and Dual Waterproof Rear Cameras, Sony STARVIS 2, Wi-Fi 6, GPS

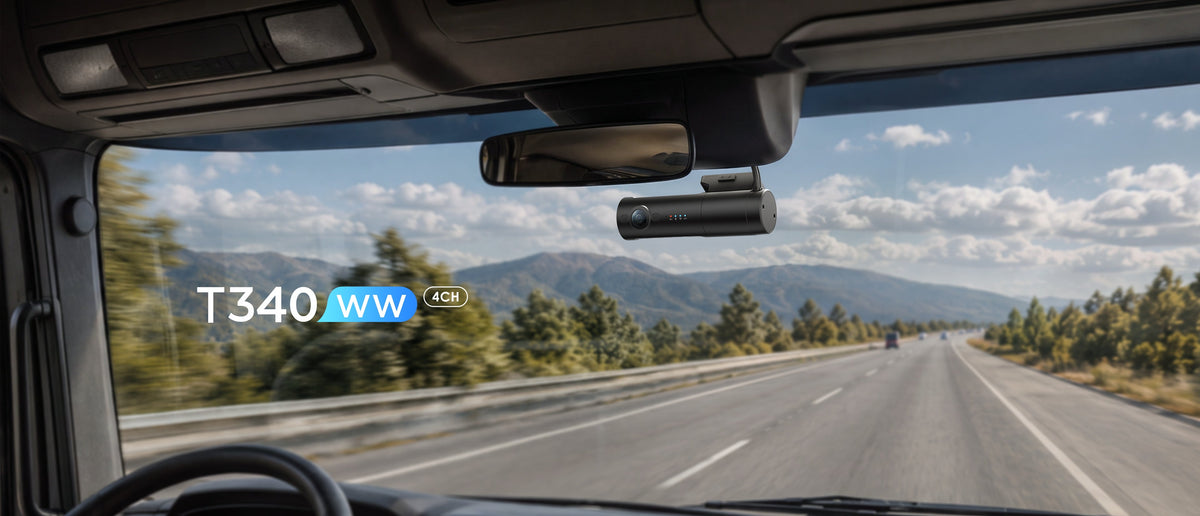

T340WW 4CH. Dual Waterproof, Any Weather

Catch the Highlights: 4K + 2K + 2K + 2K. Triple Sony STARVIS 2 Sensors. HDR Clear License Plate Capture. Dual 2K Waterproof Rear Cameras. Power-Saving Parking Mode. Wi-Fi 6 Connectivity. Instant Emergency Lock. Magnetic Front Cam CPL. Anti-Tamper Design.

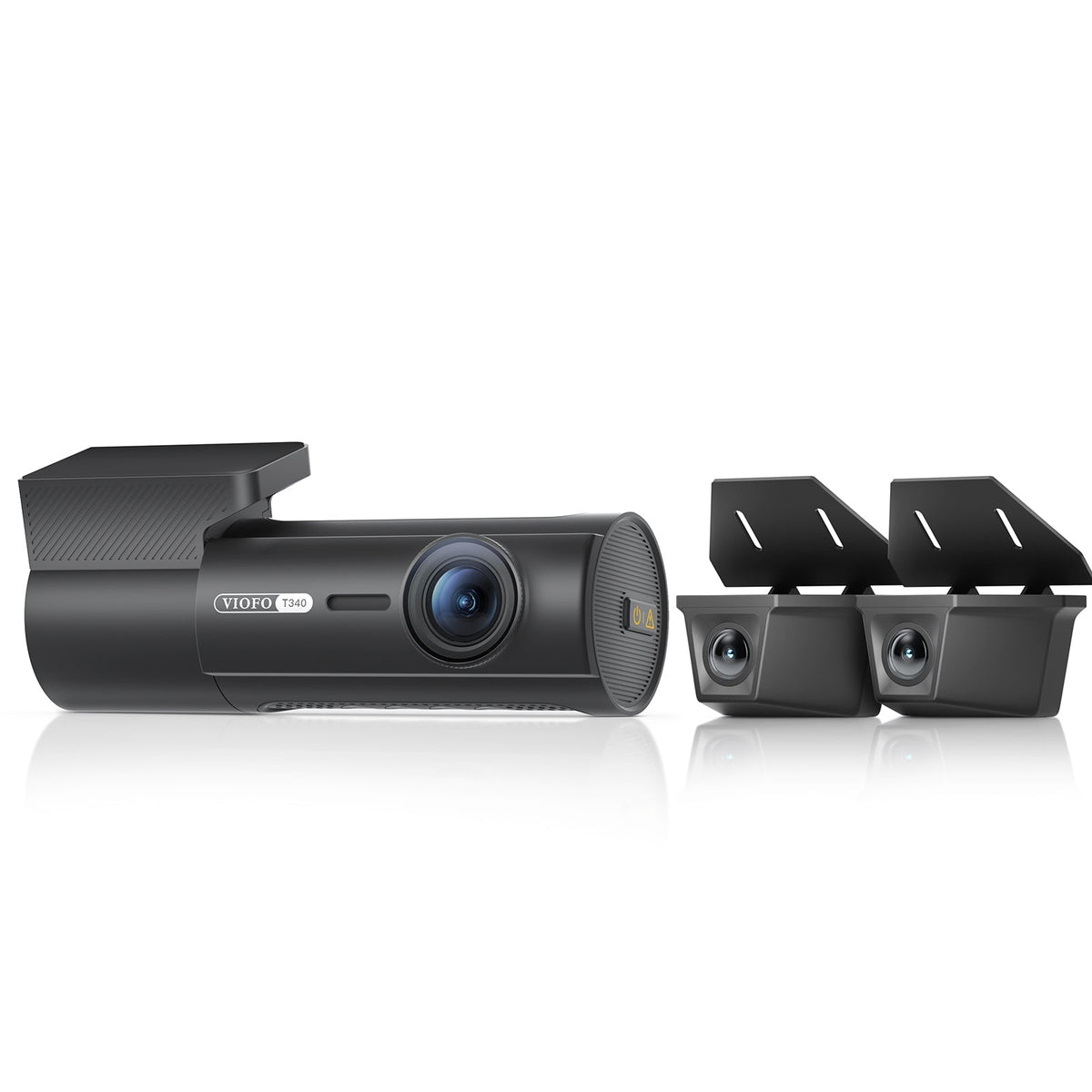

Meet the 4-Channel System. All-Around Protection, Every Angle Covered

Four synchronized cameras. One seamless view of everything around you.

4K Front Camera. True 4K clarity, front and center. 1/1.8 inch image sensor, Sony STARVIS 2, HDR supported. The front camera records in true 4K resolution, preserving fine road details and providing clear evidence when it matters most.

2K Cabin Camera. Capture inside and out. 1/1.88 inch image sensor, ultra wide 210 degree view, infrared night vision. The 210 degree ultra-wide infrared cabin camera records the interior and both side windows in 2K. Four infrared LEDs improve visibility in low light.

2K Waterproof Camera. Clear exterior vision. Rain or shine. Sony STARVIS 2, rear and side recording, built for pickups, RVs and trailers. Two waterproof cameras capture synchronized 2K exterior views through changing weather. Mount them to cover the rear and side areas that matter for your vehicle and installation.

Keep eyes on every angle at once. With a 4K front, 2K cabin, and dual 2K waterproof exterior cameras, the T340WW 4CH monitors the road ahead, the interior, and both sides simultaneously, delivering total coverage for larger vehicles.

Triple STARVIS 2 Sensors. Low-Light Visibility, Superior Detail

Multi-Channel HDR. Readable Plates, Day or Night. With Sony STARVIS 2 sensors and multi-channel HDR, the T340 adapts to extreme lighting changes effortlessly. From direct headlights to blinding backlighting, key details and license plates remain sharp and readable.

Super Night Vision. Always Clear, Even in the Dark. Equipped with Sony STARVIS 2 sensors, the T340 offers a wider dynamic range and superior low-light sensitivity. Drive confidently knowing it captures sharp license plates and roadside details, even on pitch-black roads.

Bring Peace of Mind to Every Journey. True 4K Evidence Capture

Exceptional clarity, stunning detail. See everything clearly in true 4K at 30 fps with HDR. Whether it's a distant license plate or fast-moving vehicles, the T340 ensures every frame serves as solid proof when it matters most.

Infrared Fisheye Cabin Camera. See All Inside and Outside

210 degree ultra-wide angle. Cabin to side, all in sight. Capture the entire cabin and side window views simultaneously in 2K. The 210 degree ultra-wide lens, along with the built-in IR LEDs, guarantees comprehensive protection for your cabin, day or night, perfect for both rideshare drivers and families.

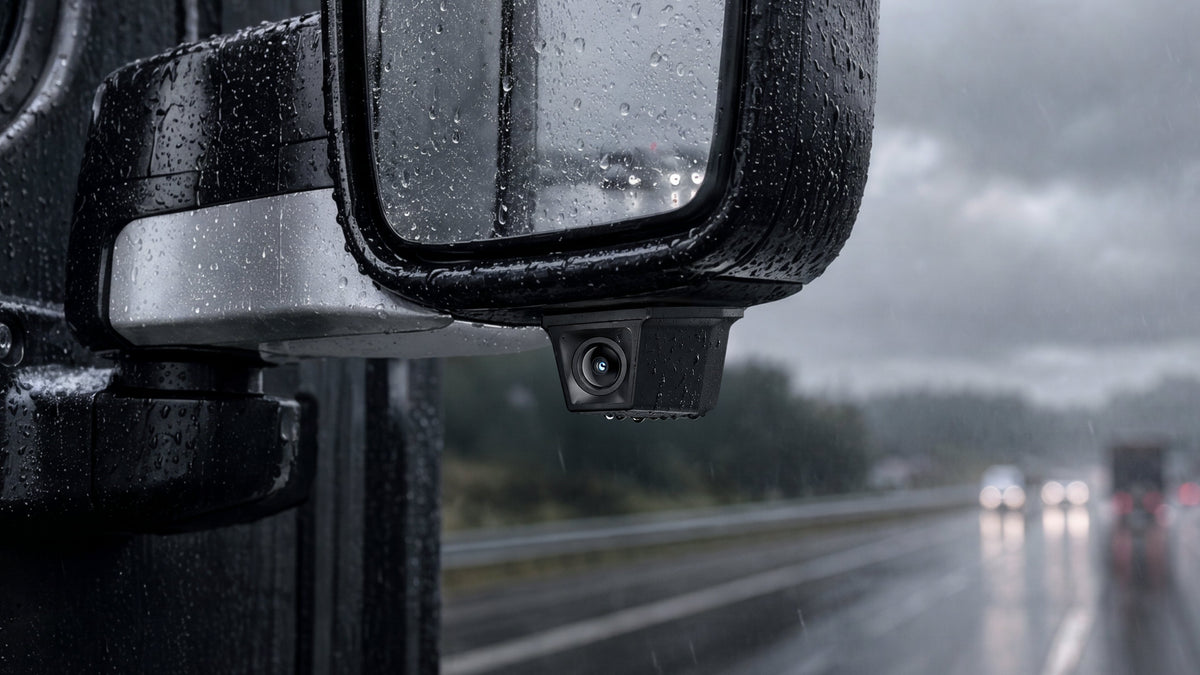

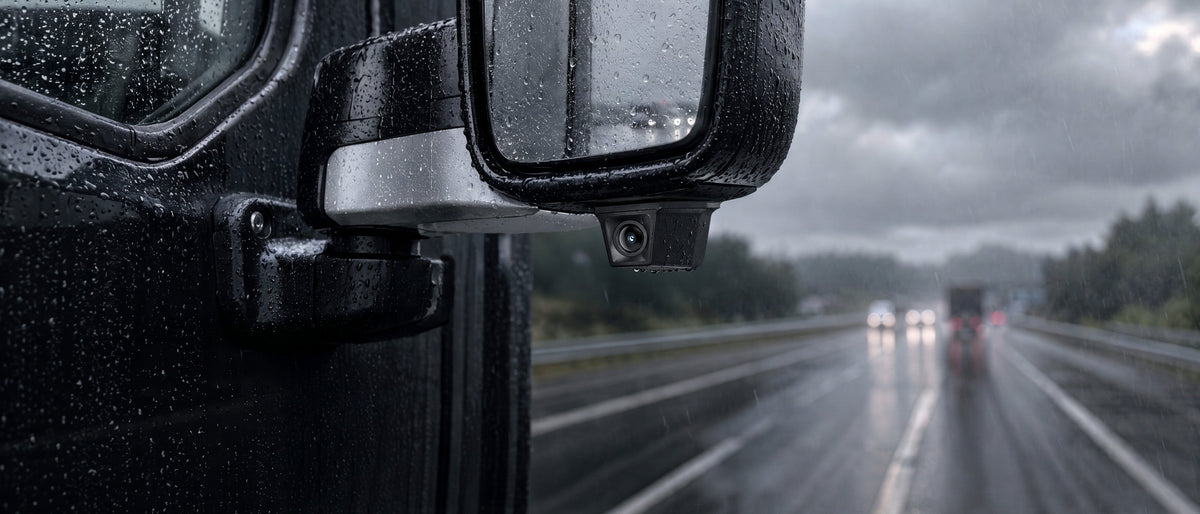

Waterproof Rear Cameras. Rain or Shine, Clear View Behind

Dual 2K waterproof rear cameras. All-weather exterior protection. Featuring the waterproof housing and clear 2K HDR resolution, the dual waterproof exterior cameras tame harsh lighting and handle severe weather, ensuring you have the solid evidence needed to stay protected against tailgaters and rear-end incidents in any weather.

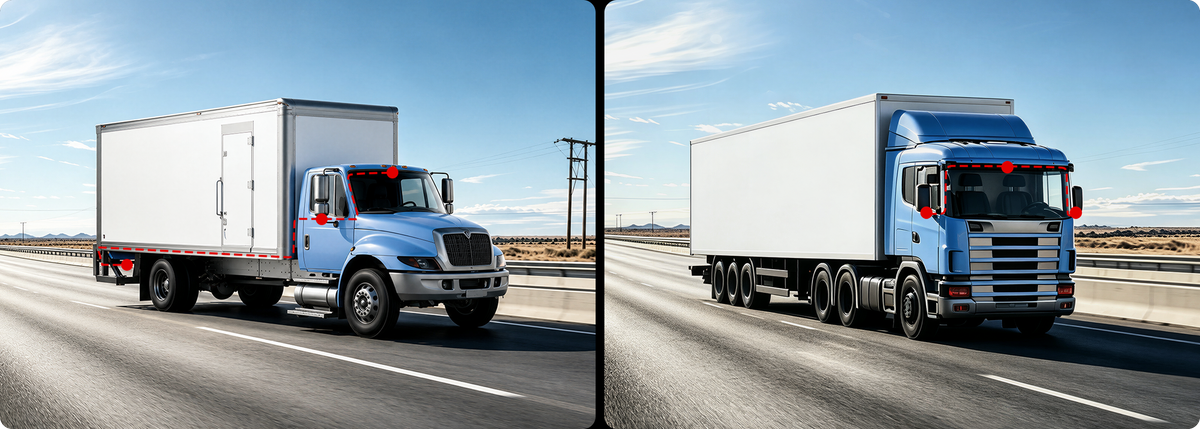

Cables in Various Lengths. Easy Setup for Trucks and Heavy-Duty Vehicles

Choose from 8 m, 10 m, or 15 m cables to effortlessly mount the dual waterproof exterior cameras wherever you need them most, on side mirrors, truck beds, or long trailers. Get clear, blind-spot-free coverage in any weather.

Wi-Fi 6 Connectivity. Faster Transfers, Instant Downloads

Experience faster, more stable transfer with dual-band (2.4 GHz and 5 GHz) Wi-Fi 6 technology. Use the VIOFO Dashcam App to preview live footage, update settings, and save videos to your phone in seconds without cables.

Hands-Free Voice Control. Say the Word, Stay in Control

Focus on driving while the T340 handles the rest. Easily lock footage or take snapshots using simple voice commands in multiple languages. Proactive voice alerts keep you informed of memory card errors or setting changes for total peace of mind on the road. Note: supports English, Chinese (Mandarin), Russian and Japanese for voice control.

Ultra-Precise GPS. Precise Tracking, Powerful Evidence

From city drives to cross-country trips, the T340 keeps every mile documented. Quad-mode satellite coverage (GPS, BeiDou, Galileo, and GLONASS) provides clear, reliable records of your speed, location, and timestamps on every video playback.

Multiplex Video. One Single File, Instant Sharing

Merge multiple camera feeds into a single video file for full-coverage playback. The T340 makes it easy to generate multi-perspective footage that's ready to review, export, or share instantly, with no editing required.

• 2-Channels Multiplex. Combining two camera angles into a single side-by-side video file for instant playback and effortless sharing, zero editing required.
• 3-Channels Multiplex. Merging three selected views into one synchronized file so multiple angles can be reviewed together.
• 4-Channels Multiplex. Combining front, interior, and dual waterproof exterior views into one synchronized file for a complete, indisputable record in a single video.

Parking Mode: 24/7 Peace of Mind

Hybrid Parking Recording. Vehicle Battery Protection. Low Power Impact Detection. Note: to use parking mode, a VIOFO HK6-F hardwire kit is required and sold separately.

Hybrid Parking Recording. Capture More, Consume Less. Hybrid parking starts in time-lapse, low-bitrate or event-detection recording, then switches to impact detection once your set cut-off time or battery voltage is reached. Cut-off voltage is only available with the VIOFO HK6-F hardwire kit.

Low Power Impact Detection. Ultra-Low Draw, Instant Guard. Very low power draw makes this mode ideal for long parking sessions. The T340 waits in standby with impact detection always on, waking within 2 seconds to record a one-minute clip.

Standard Parking Mode. Time Lapse Recording captures footage without audio at optional frame rates of 1 / 2 / 3 / 5 / 10 fps to conserve storage space and power. With Super Night Vision, the time-lapse footage is brighter and clearer, even in near-total darkness. Super Night Vision brightens parking footage in near-total darkness, keeping plates and surroundings visible. Low Bitrate Recording records continuously at a reduced bitrate to extend recording time and save storage while parked. Auto Event Detection detects motion and impacts around your parked car, automatically saving the moments before and after each event.

Smart Geofencing Control. Set Zones, Save Power. Define trusted locations, your home garage or workplace, and the T340 shuts down there instead of entering parking mode. Enable Low Power Impact Recording to keep impact detection on inside those zones. Entering the zone: parking recording off. Exiting the zone: parking recording on.

Vehicle Battery Protection. Low Voltage Cutoff: if voltage ever drops below the level set on the hardwire kit's cutoff switch, power is cut entirely to protect the battery. Detachable Design: with removable input and output cables and simple plug-in connections, installation, maintenance, and future upgrades are easier than ever. Voltage Display via Bluetooth: check your car battery's real-time voltage in the VIOFO Dashcam App via Bluetooth, anytime.

Battery Pack Ready. Longer Parking, Zero Battery Drain

Pair with the VIOFO BP100 or BP60 battery pack (sold separately) and parking mode runs on the battery pack's own power, for hours longer, with your vehicle battery untouched. Smart Bluetooth features keep the battery level in view: in the app and on the footage itself.

• Cut-off Battery Pack Capacity. Connected to the battery pack, the dash cam reads its level wirelessly and ends parking recording at the reserve you choose (5% / 8% / 10% / 15%). The reserve keeps impact detection armed, so the camera can still wake and record if the car is hit.
• Battery Level in the VIOFO Dashcam App. Check the battery pack level on the app home screen, even while the dash cam is off. The dashboard adds charging status, temperature, input and output readings, and the estimated remaining runtime.
• Battery Level Stamp on Footage. Enable the Battery Pack Capacity stamp and every clip records the remaining battery level at the moment of recording, useful context when reviewing a parking incident days later.

Instant Footage Lock. Press It, Protect It

One touch is all it takes. Alongside automatic G-sensor impact locking, the side button lets you instantly secure key moments whenever you want. Footage of road incidents, hit-and-runs, or close calls won't be overwritten easily.

Installation Essentials. Everything for a Clean Install

Tamper-Resistant Cover. Cleaner Installation, Better Protection. Protect your dash cam from unauthorized access. The tamper-resistant cover prevents unauthorized tampering or accidental disconnections while maintaining a clean, professional install.

Ultra-Slim Coaxial Cable. Slim Design, Neat Installation. Easily tuck the ultra-slim coaxial cables behind car panels for a clean, hidden install. Get high-speed and interference-free performance that keeps your electronics running smoothly.

Dual Type-C Car Charger. Two Ports, Double Convenience. Charge two devices at once. Featuring a 30W Type-C fast-charging port and a 15W dash cam port, this car charger includes a soft-glow ring for quick, easy plugging at night. Do NOT connect your dash cam to the orange port. It will not power your dash cam.

Complete Your Setup. Made to Fit, Tested to Last

Circular Polarizing Lens (CPL). No Glare, No Reflections. Cut through glare with ease. The snap-on magnetic front CPL filter reduces windshield reflections and road glare, delivering clear and natural-looking footage.

Bluetooth Remote Control (Optional). One Press, Safety Access. Stick the Bluetooth remote anywhere convenient to secure critical footage in one press and configure the side buttons to access your favorite features instantly. Control range: up to 5 metres.

VIOFO High-Endurance microSD Card (Sold Separately). Built to Record, Made to Last. Don't risk dropped frames or missing evidence. Built for constant dash cam recording, VIOFO industrial-grade microSD cards ensure smooth, error-free storage on every journey. For optimal performance, we recommend using a VIOFO microSD card.

VIOFO Product Video

Product Layout

1. Tamper-Resistant Cover
2. Mounting Bracket
3. Front Camera Lens
4. Power On / Off and Video Protect

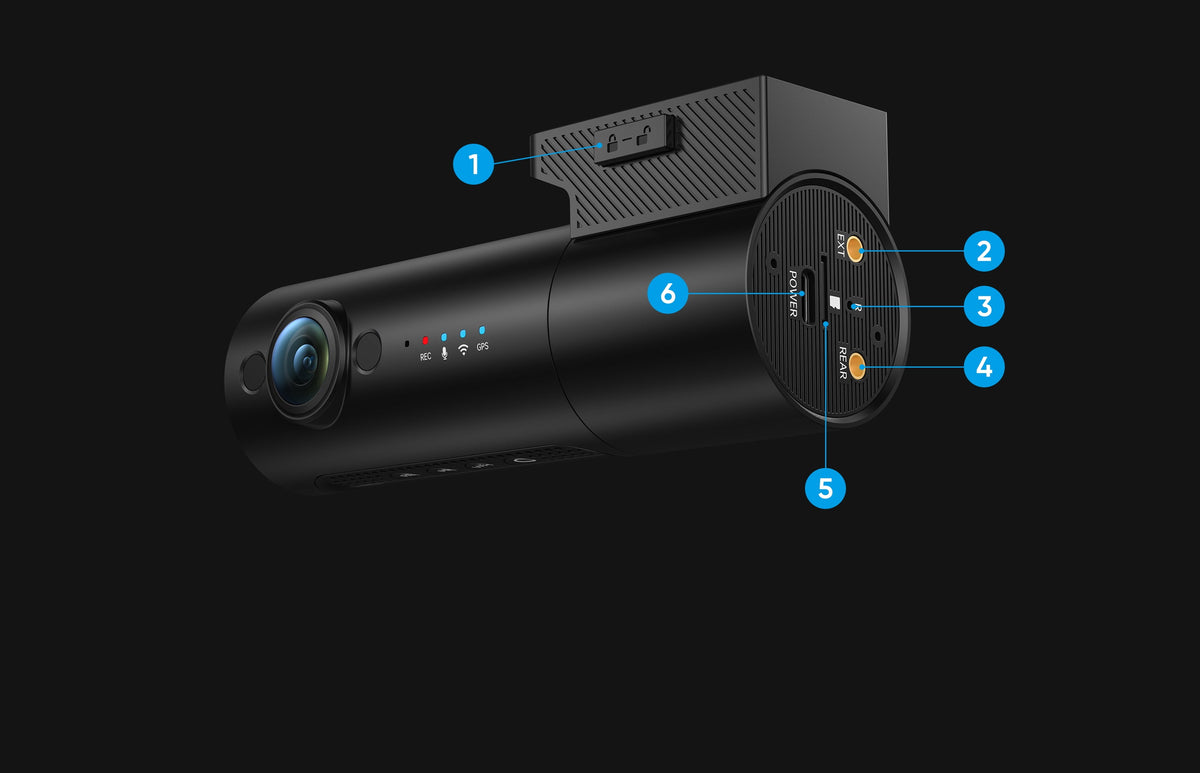

1. Bracket Release Button
2. Telephoto Camera Port / Waterproof Rear Camera Port
3. Reboot Pinhole
4. Rear Camera Port / Waterproof Rear Camera Port
5. Memory Card Slot
6. USB Power Port

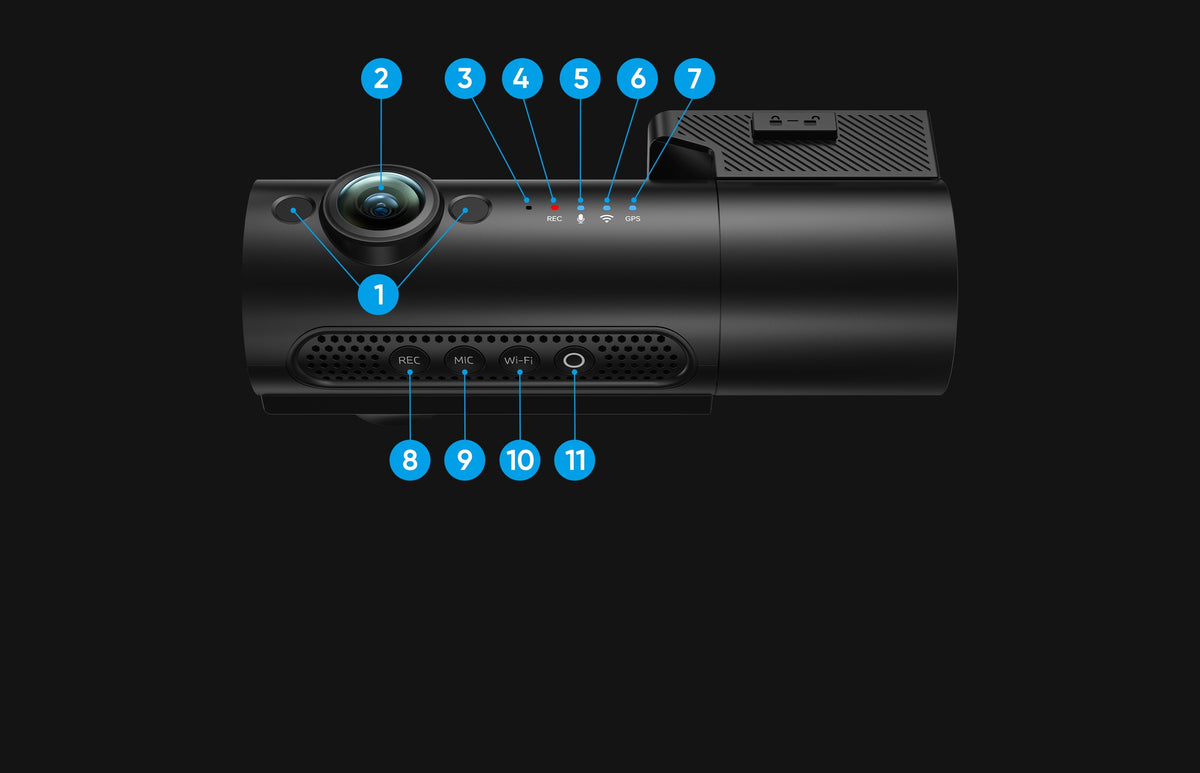

1. Infrared LEDs
2. Cabin Camera Lens
3. Microphone Hole
4. Recording Status Indicator
5. Microphone Status Indicator
6. Wi-Fi Status Indicator
7. GPS Status Indicator
8. Recording Start / Stop
9. Microphone On / Off
10. Wi-Fi On / Off
11. Custom Button

Product Size

VIOFO Packing List

• Main Unit (Front + Cabin Cameras) x 1
• Waterproof Rear Cameras x 2
• Rear Camera Cables x 2 (Length: 2.5 m / 7.5 m / 9.5 m / 14.5 m depending on the option selected)
• Car Charger x 1 (Length: 3.5 m)
• Type-C Data Cable x 1 (Length: 0.5 m)
• Front Camera CPL x 1
• Infrared Cabin Camera Cover x 1
• Tamper-Resistant Cover x 1
• Waterproof Rear Camera Screws x 4
• Tamper-Resistant Cover Screws x 4
• Hex Key x 1
• Trim Removal Tool x 1
• Spare Mount Sticky Pads (Set) x 1
• Windshield Static Stickers x 2
• Warning Sticker x 1
• User Manual x 1
• Quick Start Guide x 1
• After-Sales Service Card x 1

Manufacturer copy, imagery and video: VIOFO. Reproduced with permission. The version we ship is the 8m plus 8m dual waterproof SKU.
