VIOFO T340TW 4CH Telephoto + IR Cabin + Waterproof Rear Dash Cam - 4K, Triple STARVIS 2, 8m Cable

Four Angles, One Camera, Nothing in Your Eyeline. The VIOFO T340TW 4CH records 4K ahead, 2K through a 4x optical zoom telephoto, 2K of the cabin in infrared and 2K from a sealed rear camera that mounts outside

Three-channel cameras make you pick which problem you care about. Cover the cabin and you give up the telephoto that reads a plate three cars ahead. Take the telephoto and the inside of the car is a blind spot, which is the one angle a rideshare driver or a fleet actually needs on record. Put the rear camera behind glass and a tray, a load or a trailer fills the frame. The T340TW stops making you choose.

Trusted AU store: We're an authorised Australian reseller, shipping from Melbourne within 24 hours^*. You get an 18-month warranty with no product registration required, local technical support, and our 30-Day No-Worries returns.

Who This Isn't For: The rear camera here is a sealed unit built to mount on the outside of the vehicle, so the cable has to pass through bodywork to reach it. If you want a rear camera stuck inside the rear window, the VIOFO A329TC 3CH covers front, telephoto and cabin without an exterior mount. This one is for utes, vans, trucks and caravans where the back of the vehicle is the whole point.

Check Before You Order

• This listing is the 8m waterproof and 1m telephoto configuration. VIOFO lists the cable supplied with the 8m option as 7.5m. We do not stock the other cable lengths for this model.
• Parking mode needs a hardwire kit. The car charger in the box powers the camera while the engine runs. Parked recording needs the VIOFO HK6-F kit from our hardwire kit range, bought separately.
• The rear camera mounts outside. It fixes above the number plate or beside a roof antenna with the two supplied screws, and the cable routes through into the cabin.
• The cabin camera is built into the front unit. It films the interior and both side windows from the windscreen, so it cannot be aimed or repositioned on its own.

DCG Highlights

What We Love

• Four HDR channels recording at once, 4K up front plus three separate 2K feeds, rather than the 1080p side and rear channels most four-camera systems fall back on
• Three Sony STARVIS 2 sensors, an IMX678 up front and IMX675 on the telephoto and the waterproof rear, which is what keeps a plate legible under oncoming headlights instead of blooming into white
• 4x optical zoom on the telephoto rather than a digital crop, so distant plate detail is actually captured rather than enlarged after the fact
• The 210 degree infrared cabin camera is built into the front body, covering the interior and both side windows after dark with no second unit stuck to the windscreen
• An IP67 rated rear camera made for exterior mounting, so it can sit above the number plate on a ute or a van instead of behind glass that a tray or trailer fills

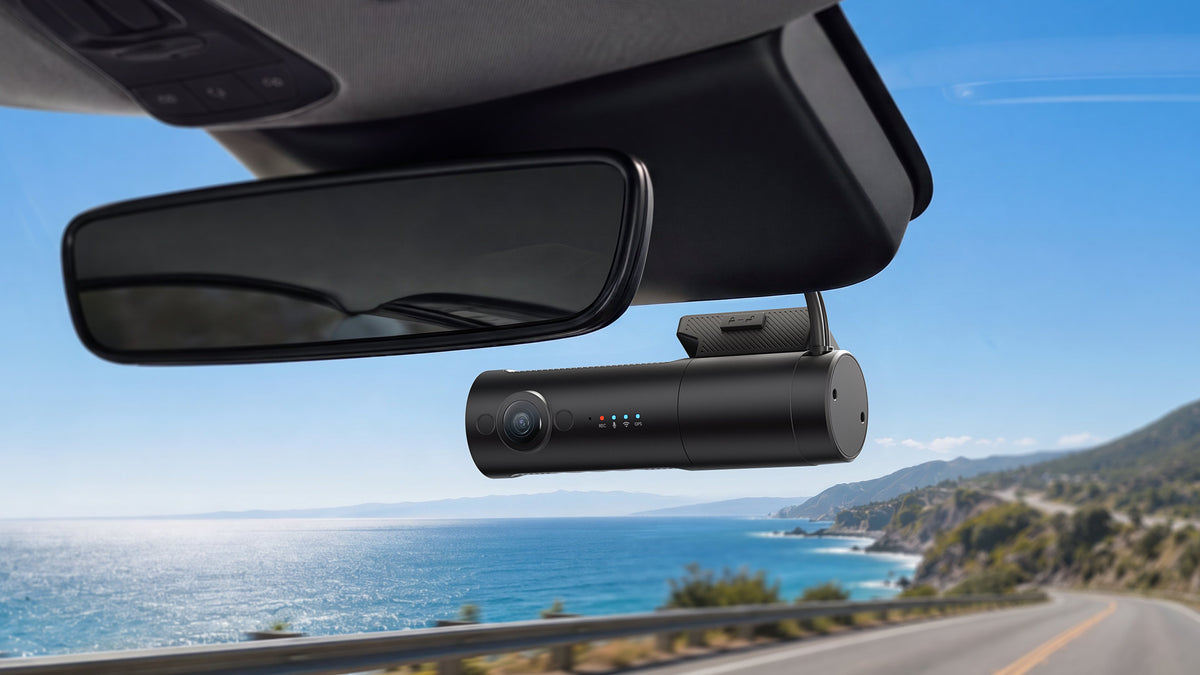

• No screen at all, so the front unit tucks behind the rearview mirror and gives a passer-by nothing to notice
• Wi-Fi 6 on both 2.4GHz and 5GHz, which pulls a 4K clip to your phone in a fraction of the time an older 2.4GHz camera takes
• Four-channel multiplex export writes every angle into one synchronised file, so an insurer gets one video rather than four

Good to Know

• Parking mode of any kind needs the HK6-F hardwire kit bought separately, from our hardwire kit range. Cut-off voltage and the Bluetooth battery voltage readout come from that kit, not the camera.
• The interior camera uses an OmniVision OS04J10 sensor, not a Sony STARVIS 2 like the other three. VIOFO's triple STARVIS 2 claim covers the front, telephoto and waterproof rear channels.
• VIOFO's part number for this configuration ends in 128GB, but their published packing list does not show a card. Four HDR channels fill a card quickly either way, so most drivers move to 256GB or larger from our memory card range.
• The telephoto lens sees 35 degrees. It is a reach lens, and it does not widen your coverage or replace the wide front camera.

Why Four Channels Need Four Different Lenses

A four-channel dash cam is only worth the install if the four lenses are doing four different jobs. Sensor resolution is a fixed budget spread across whatever the lens takes in, so a wide lens spends its pixels on width and a narrow lens spends them on distance. The VIOFO T340TW 4CH splits that budget deliberately: 140 degrees at 4K for the road ahead, 35 degrees at 2K through 4x optical zoom for plates several cars away, 210 degrees at 2K with infrared for the cabin and both side windows, and 160 degrees at 2K on a sealed rear camera mounted outside the vehicle. Four cameras all shooting 140 degrees would just hand you four copies of the same compromise. The honest trade-off is install time and storage, because four HDR channels take longer to route and fill a card faster than two.

Top Benefits

• Plates you can actually read: the 4x optical zoom telephoto captures plate detail several cars ahead, where a wide lens records only a shape.
• The inside on record too: the built-in 210 degree infrared cabin camera covers passengers and both side windows after dark, which is the angle rideshare and fleet drivers get asked for.
• Rear cover that handles weather: the IP67 rear camera mounts outside on a tray, a van door or a bumper, so a load or a trailer never blocks the view.

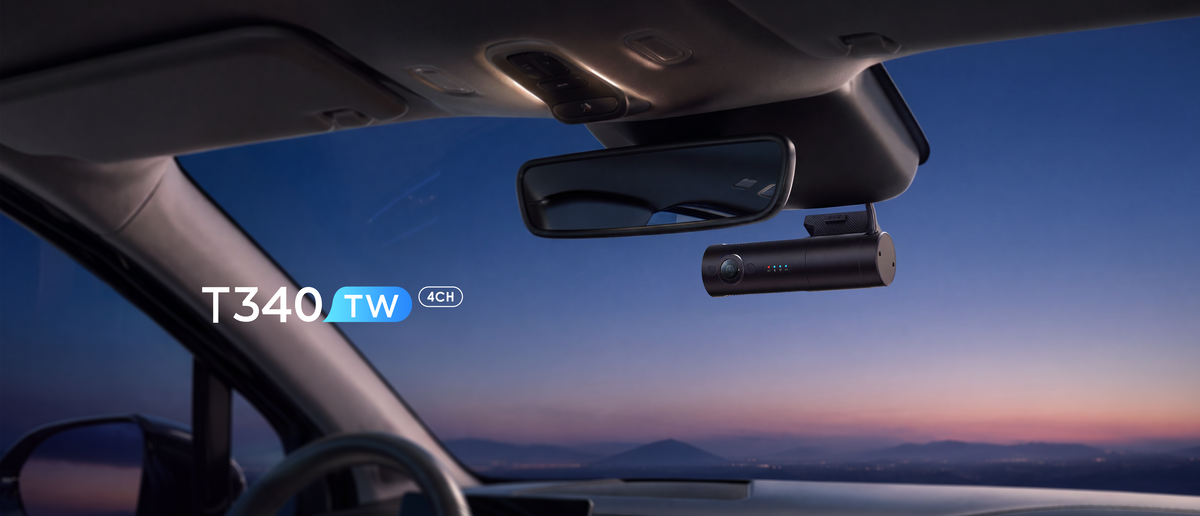

• Nothing on show: the screenless front body sits behind the mirror, which keeps the camera unremarkable to anyone looking in.
• Evidence off the camera faster: Wi-Fi 6 moves a locked 4K clip to your phone in the VIOFO app without pulling the card out.
• One file to send: four-channel multiplex recording merges every angle into a single synchronised video, so a claim or a police report needs one attachment.
• Parked cover without a flat battery: hybrid parking recording drops to low power impact detection at your cut-off, and the HK6-F cuts power at the voltage you set.

How It Installs

1. Stick the front unit high on the windscreen behind the rearview mirror, using a supplied static sticker so the mount can be moved later. The cabin camera and its infrared LEDs sit in that same body, so where you aim the front unit decides where the cabin view lands.

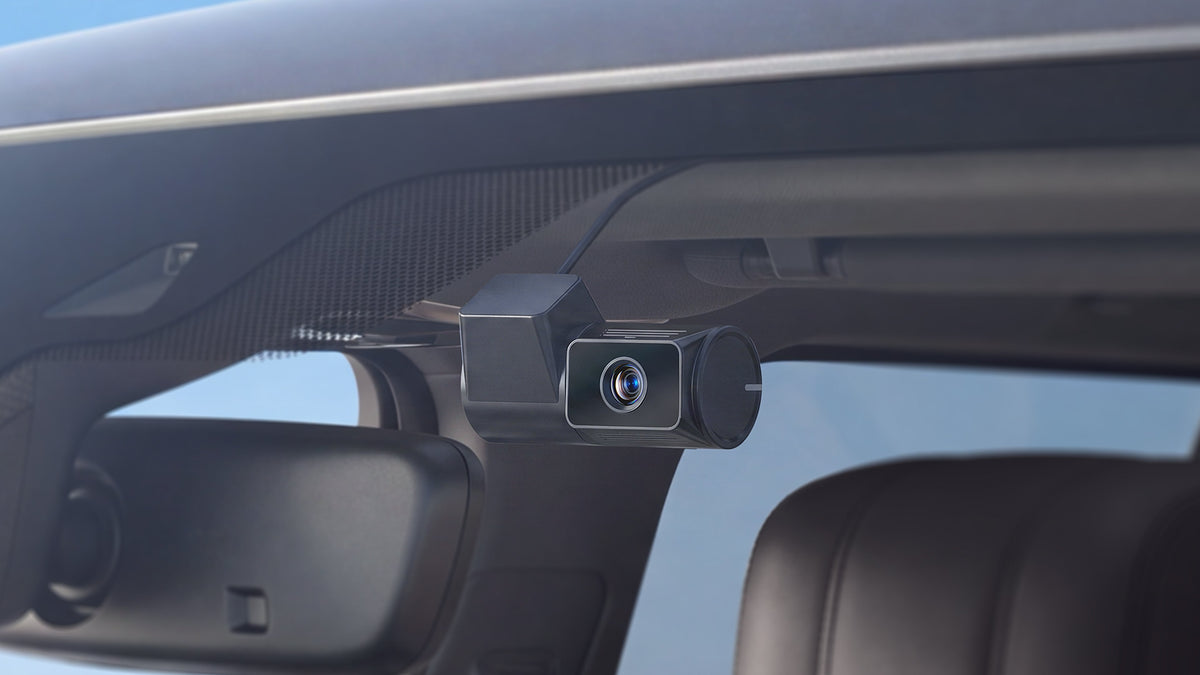

2. Mount the telephoto camera on the windscreen near the front unit on its 1m cable, aimed straight down the road.
3. Fix the waterproof rear camera outside with the two supplied screws, then route the 7.5m cable through into the cabin and forward along the trim.
4. Plug in the supplied dual USB-C car charger, or fit the HK6-F kit to the fuse box for parking mode. Hardwiring means removing lower dash trim and finding an earth point.
5. Fit the memory card, set the time zone and parking mode in the VIOFO app, then fit the tamper-resistant cover and the infrared cabin camera cover.

Budget three to four hours for a tidy first install, longer on a dual cab where the rear cable has to cross a tub. We do not install cameras ourselves, but you can find someone local in our directory of independent installers. They are independent businesses, so you book and contract directly with them.

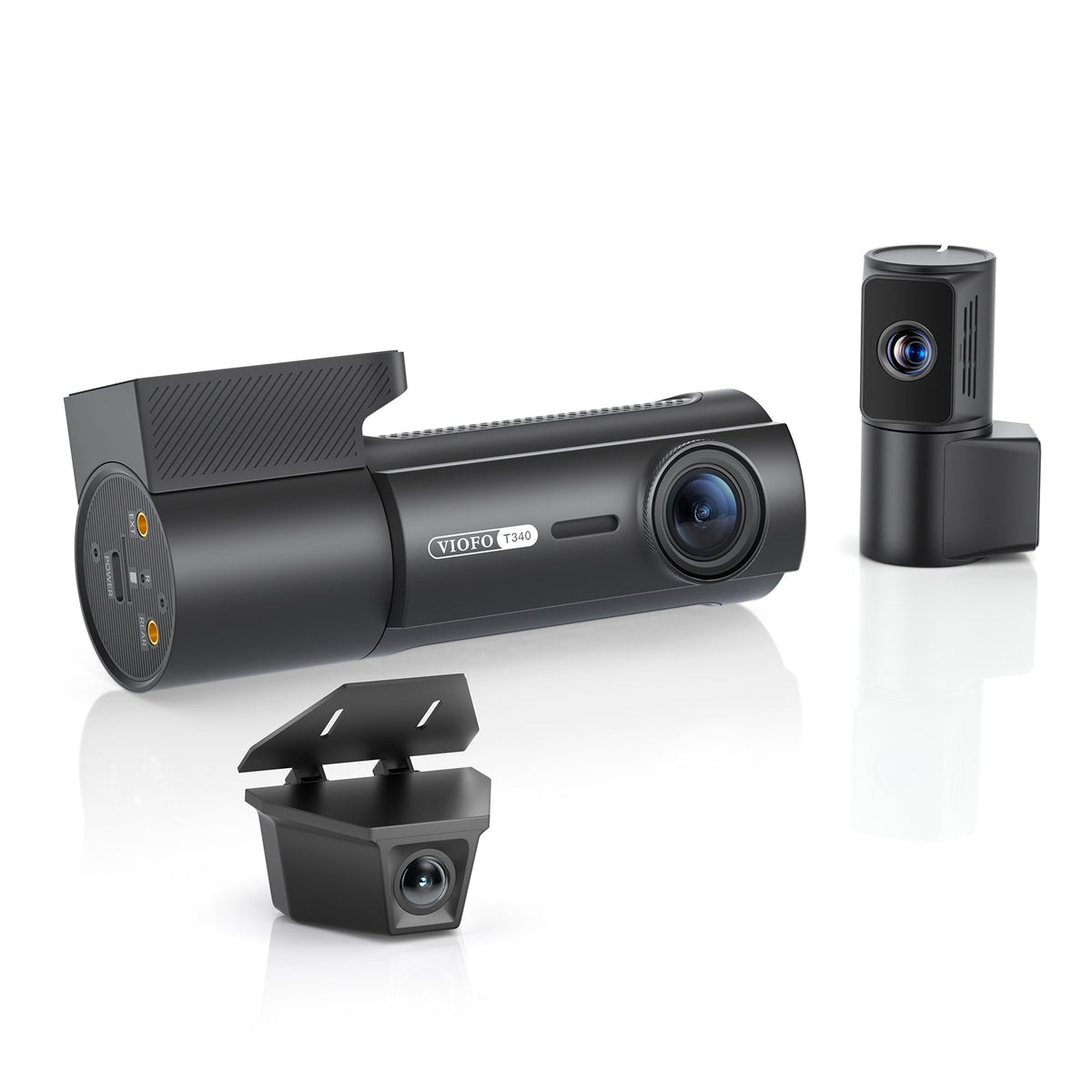

What's in the Box

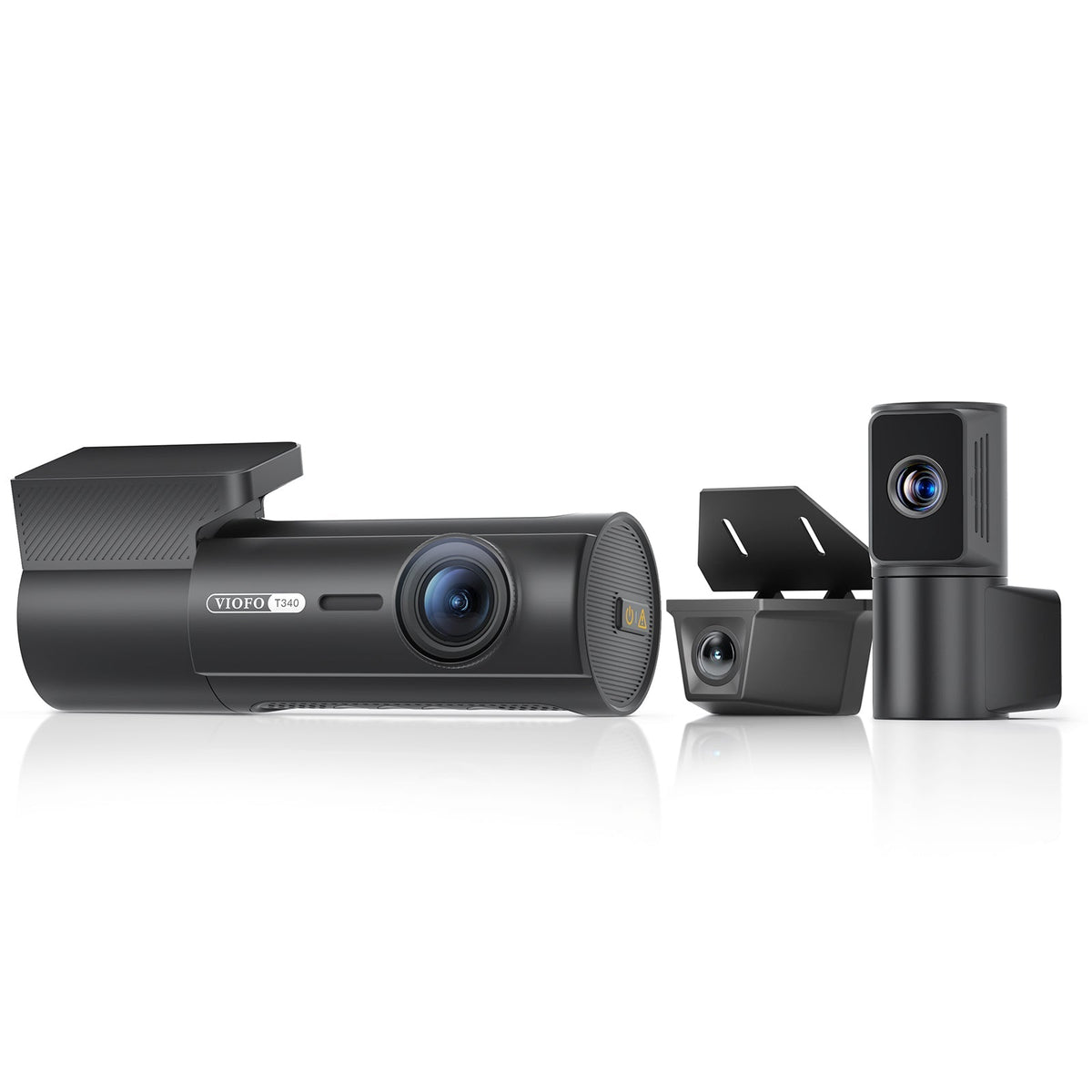

• Main unit x 1, containing the front camera and the built-in infrared cabin camera
• Telephoto camera x 1
• Waterproof rear camera x 1
• Telephoto camera cable x 1, 1m
• Waterproof rear camera cable x 1, 7.5m for this 8m configuration
• Dual USB-C car charger x 1, 3.5m, and a 0.5m Type-C data cable
• Magnetic front camera CPL filter x 1, the CPL-700
• Infrared cabin camera cover x 1
• Tamper-resistant cover x 1 with 4 screws, hex key x 1, trim removal tool x 1
• Spare mount sticky pads x 1 set, windscreen static stickers x 3, rear camera screws x 2
• Warning sticker, quick start guide, user manual, after-sales service card

Not included: the HK6-F hardwire kit, the BTR200 Bluetooth remote, the CPL-600 telephoto filter and a dedicated battery pack. VIOFO's part number for this configuration ends in 128GB but their packing list does not show a card, so treat storage as something to confirm rather than assume.

Fitment & Compatibility

• Vehicles: sedans, SUVs, utes, vans, trucks and caravans on a 12V or 24V system. The exterior rear camera suits a ute tray, a van rear door, a bumper or a roof line.
• Hardwire kit: VIOFO HK6-F only. The HK6, HK6-A and HK4 kits suit other VIOFO families, not the T340.
• CPL filters: the magnetic CPL-700 front filter is included. The telephoto takes the VIOFO CPL-600, sold separately from our CPL filter range. VIOFO states the cabin and waterproof rear cameras need none.
• Remote: VIOFO BTR200 Bluetooth remote, sold separately, with a range VIOFO quotes at 5 metres.
• Battery packs: VIOFO states the BP100 and BP60 packs can run parking mode on their own power, sold separately.
• Storage: microSD up to 512GB. There is no SSD support on this model.
• Replacement cameras: the telephoto camera is the VIOFO RTC420 and the waterproof rear camera is the RWC400. Both are the same modules VIOFO uses on the A329 platform, so a replacement for either fits this camera.
• Not compatible with: VIOFO A229 and A129 series cameras and cables, which use different connectors, and every hardwire kit except the HK6-F. VIOFO does not confirm that A329 replacement cables carry across, so check with us before ordering a longer cable.
• Australian fitment: this is a universal windscreen fit, so VIOFO publishes no vehicle list. If you are unsure the rear cable can be routed on your vehicle, email a photo of the back of the car to gday@dashcamguys.com.au and we will tell you what we would do.

Cover Every Angle Today

Add the VIOFO T340TW 4CH and put the road, the distance, the cabin and the weather behind you on the same recording. Most drivers add the HK6-F from our hardwire kit range and a larger card from our memory card range at the same time. If you are still weighing up how many channels you need, our 4-channel dash cam range lines the options up side by side. Ships from Melbourne within 24 hours^*, with an 18-month warranty and our 30-Day No-Worries returns.

Last updated: September 2026

---

VIOFO's Own Product Description for the T340TW 4CH

Everything below this line is VIOFO's own marketing copy, imagery and video for this camera, reproduced with their permission so you can read the manufacturer's version alongside ours. Where their wording and our page differ, our specifications metafield and the user manual are the figures we stand behind.

T340TW 4CH: Distant Plates, Weatherproof Rear

4K Front Camera. 1/1.8 inch image sensor, Sony STARVIS 2, HDR supported. 2K Cabin Camera. 1/1.88 inch image sensor, ultra wide 210 degree view, infrared night vision. 2K Tele Camera. 4x optical zoom, Sony STARVIS 2, ultimate license plate capture. 2K Rear Camera. IP67 waterproof rating, Sony STARVIS 2, built for pickups, RVs and trailers.

Video: VIOFO T340 Series Dash Cam. 4 Channels. All Covered.

Meet the 4-Channel System

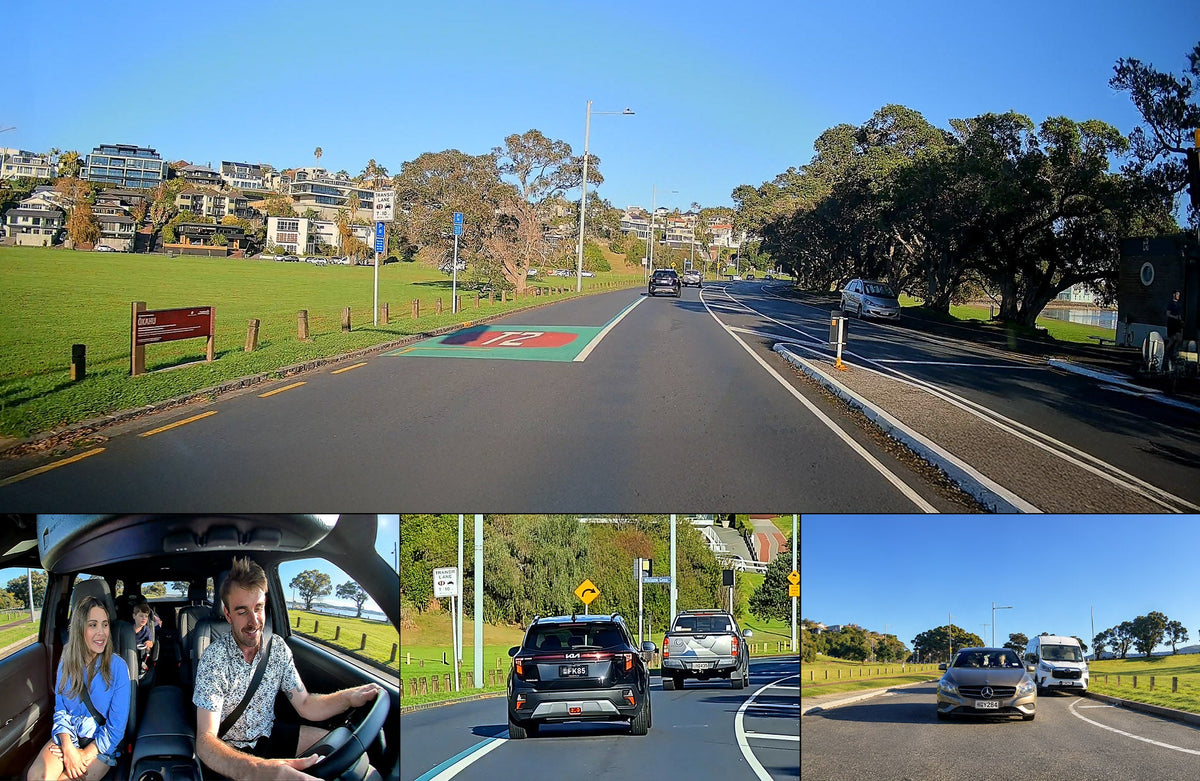

All-Around Protection, Every Angle Covered. Four synchronized cameras. One seamless view of everything around you.

True 4K clarity, front and center. The front camera records in true 4K resolution, preserving fine road details and providing clear evidence when it matters most.

Capture inside and out. The 210 degree ultra-wide infrared cabin camera captures the full interior and both side windows in 2K. Integrated infrared illumination keeps the cabin view useful after dark.

Bring distance closer. The 2K telephoto camera uses 4x optical zoom to capture distant vehicles and road details more clearly, adding a focused view alongside the wide front recording.

Clear rear vision. Rain or shine. The waterproof rear camera records a clear 2K view behind the vehicle through changing weather, helping preserve rear plates and incident details.

All-Around Protection, Every Angle Covered. Keep eyes on every angle at once. With a 4K front, 2K telephoto, 2K cabin, and 2K waterproof rear camera, the T340TW 4CH monitors the road ahead, long-range details, the cabin, and behind simultaneously, delivering complete coverage for total confidence on the road.

Triple STARVIS 2 Sensors: Low-Light Visibility, Superior Detail

Readable Plates, Day or Night. With Sony STARVIS 2 sensors and multi-channel HDR, the T340 adapts to extreme lighting changes effortlessly. From direct headlights to blinding backlighting, key details and license plates remain sharp and readable.

Always Clear, Even in the Dark. Equipped with Sony STARVIS 2 sensors, the T340 offers a wider dynamic range and superior low-light sensitivity. Drive confidently knowing it captures sharp license plates and roadside details, even on pitch-black roads.

Exceptional Clarity, Stunning Detail. See everything clearly in true 4K at 30 fps with HDR. Whether it is a distant license plate or fast-moving vehicles, the T340 ensures every frame serves as solid proof when it matters most.

Infrared Fisheye Cabin Camera: See All Inside and Outside

Cabin to Side, All in Sight. Capture the entire cabin and side window views simultaneously in 2K. The 210 degree ultra-wide lens, along with the built-in IR LEDs, guarantees comprehensive protection for your cabin, day or night, perfect for both rideshare drivers and families.

Telephoto Camera: Bring Distance Closer

Distant Details, Easily Identified. By combining an ultra-wide front camera with a 2K 4x optical zoom telephoto lens, this setup turns faraway license plates and distant road events into clear, undeniable proof, ensuring complete coverage near and far.

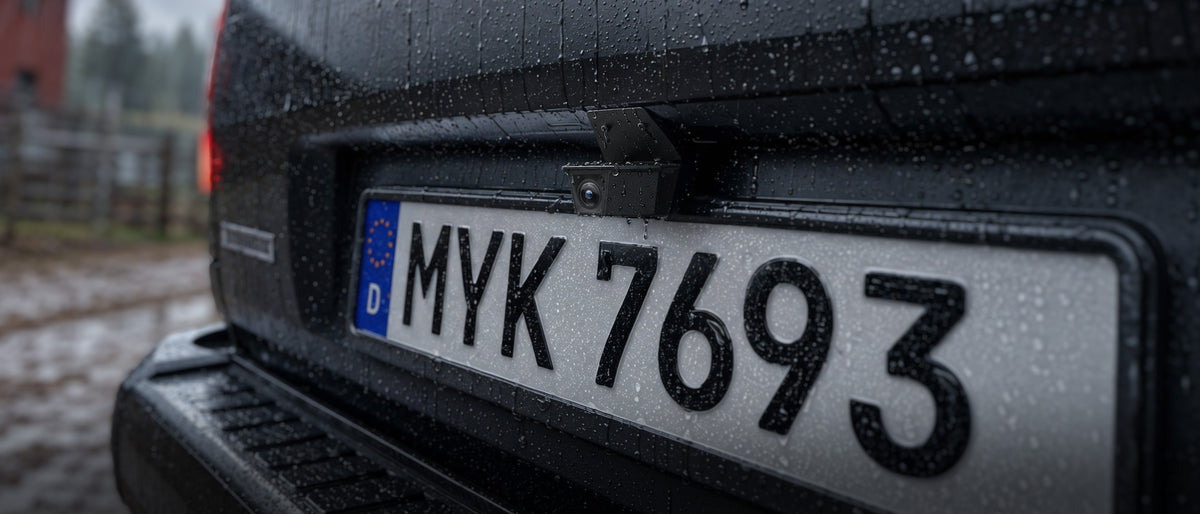

Waterproof Rear Camera: Rain or Shine, Clear View Behind

All-Weather Rear Protection. Featuring a waterproof housing and clear 2K HDR resolution, this rear camera tames harsh lighting and handles severe weather, ensuring you have the solid evidence needed to stay protected against tailgaters and rear-end incidents in any weather.

One Single File, Instant Sharing

Multiplex Video. Merge multiple camera feeds into a single video file for full-coverage playback. The T340 makes it easy to generate multi-perspective footage that is ready to review, export, or share instantly, with no editing required. Combining front, telephoto, rear, and interior views into one synchronized file gives a complete, indisputable record in a single video.

Faster Transfers, Voice Control and GPS

Faster Transfers, Instant Downloads. Experience faster, more stable transfer with dual-band 2.4 GHz and 5 GHz Wi-Fi 6 technology. Use the VIOFO Dashcam App to preview live footage, update settings, and save videos to your phone in seconds without cables.

Say the Word, Stay in Control. Focus on driving while the T340 handles the rest. Easily lock footage or take snapshots using simple voice commands in multiple languages. Proactive voice alerts keep you informed of memory card errors or setting changes. Note: supports English, Chinese (Mandarin), Russian, and Japanese for voice control.

Precise Tracking, Powerful Evidence. From city drives to cross-country trips, the T340 keeps every mile documented. Quad-mode satellite coverage (GPS, BeiDou, Galileo, and GLONASS) provides clear, reliable records of your speed, location, and timestamps on every video playback.

Parking Mode: 24/7 Peace of Mind

Note: to use parking mode, a VIOFO HK6-F hardwire kit is required and sold separately. Cut-off voltage is only available with the VIOFO hardwire kit.

Capture More, Consume Less. Hybrid parking starts in time-lapse, low-bitrate or event-detection recording, then switches to impact detection once your set cut-off time or battery voltage is reached.

Ultra-Low Draw, Instant Guard. Very low power draw makes this mode ideal for long parking sessions. The T340 waits in standby with impact detection always on, waking within 2 seconds to record a one-minute clip.

Time Lapse Recording. Capture footage without audio at optional frame rates of 1 / 2 / 3 / 5 / 10 fps to conserve storage space and power. With Super Night Vision, the time-lapse footage is brighter and clearer, even in near-total darkness.

Low Bitrate Recording. Records continuously at a reduced bitrate to extend recording time and save storage while parked. Auto Event Detection. Detects motion and impacts around your parked car, automatically saving the moments before and after each event.

Set Zones, Save Power. Define trusted locations, your home garage or workplace, and the T340 shuts down there instead of entering parking mode. Enable Low Power Impact Recording to keep impact detection on inside those zones.

Low Voltage Cutoff. If voltage ever drops below the level set on the hardwire kit cutoff switch, power is cut entirely to protect the battery. Voltage Display via Bluetooth. Check your car battery real-time voltage in the VIOFO Dashcam App via Bluetooth, anytime.

Longer Parking, Zero Battery Drain

Pair with the VIOFO BP100 or BP60 battery pack (sold separately) and parking mode runs on the battery pack own power, for hours longer, with your vehicle battery untouched. Connected to the battery pack, the dash cam reads its level wirelessly and ends parking recording at the reserve you choose (5% / 8% / 10% / 15%). The reserve keeps impact detection armed, so the camera can still wake and record if the car is hit.

Check the battery pack level on the app home screen, even while the dash cam is off. The dashboard adds charging status, temperature, input and output readings, and the estimated remaining runtime.

Enable the Battery Pack Capacity stamp and every clip records the remaining battery level at the moment of recording, useful context when reviewing a parking incident days later.

Press It, Protect It

Instant Emergency Lock. One touch is all it takes. Alongside automatic G-sensor impact locking, the side button lets you instantly secure key moments whenever you want. Footage of road incidents, hit-and-runs, or close calls will not be overwritten easily.

Everything for a Clean Install

Cleaner Installation, Better Protection. Protect your dash cam from unauthorized access. The tamper-resistant cover prevents unauthorized tampering or accidental disconnections while maintaining a clean, professional install.

Slim Design, Neat Installation. Easily tuck the ultra-slim coaxial cables behind car panels for a clean, hidden install. Get high-speed and interference-free performance that keeps your electronics running smoothly.

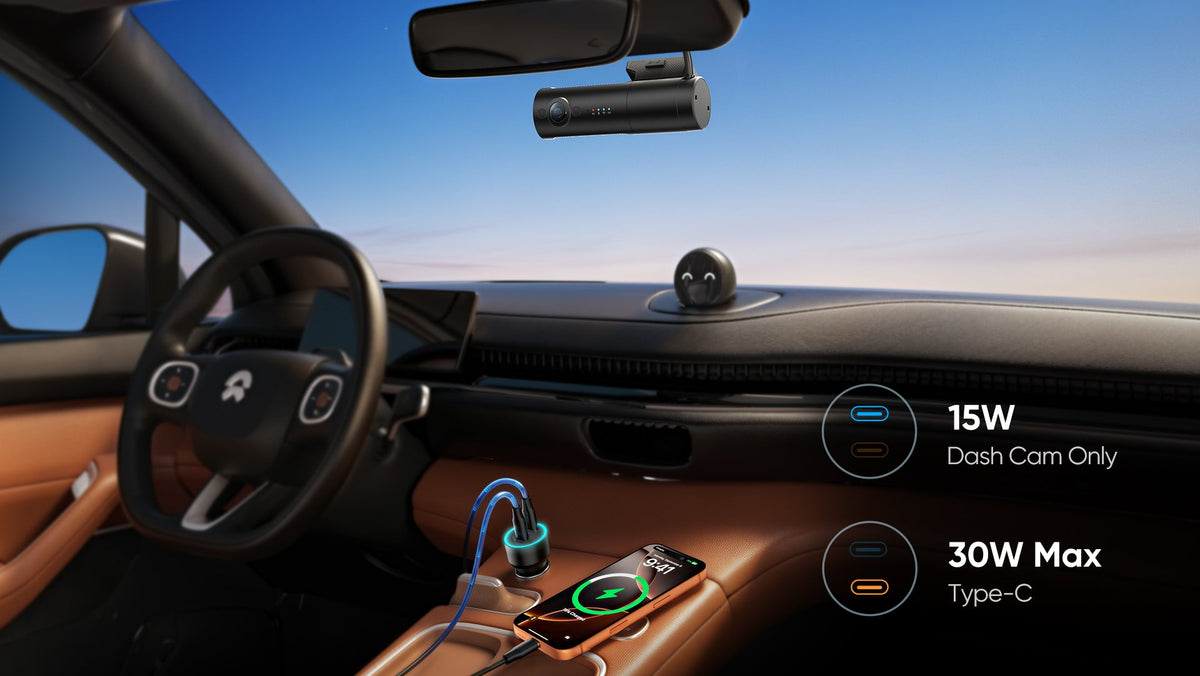

Two Ports, Double Convenience. Charge two devices at once. Featuring a 30W Type-C fast-charging port and a 15W dash cam port, this car charger includes a soft-glow ring for quick, easy plugging at night. Do NOT connect your dash cam to the orange port. It will not power your dash cam.

Made to Fit, Tested to Last

No Glare, No Reflections. Cut through glare with ease. The snap-on magnetic front and optional telephoto CPL filters reduce windshield reflections and road glare, delivering clear and natural-looking footage.

One Press, Safety Access. Stick the Bluetooth remote anywhere convenient to secure critical footage in one press and configure the side buttons to access your favorite features instantly. Control range: up to 5 meters.

Built to Record, Made to Last. Do not risk dropped frames or missing evidence. Built for constant dash cam recording, VIOFO industrial-grade microSD cards ensure smooth, error-free storage on every journey. For optimal performance, we recommend using a VIOFO microSD card.

Product Layout

1 Tamper-Resistant Cover. 2 Mounting Bracket. 3 Front Camera Lens. 4 Power On / Off and Video Protect.

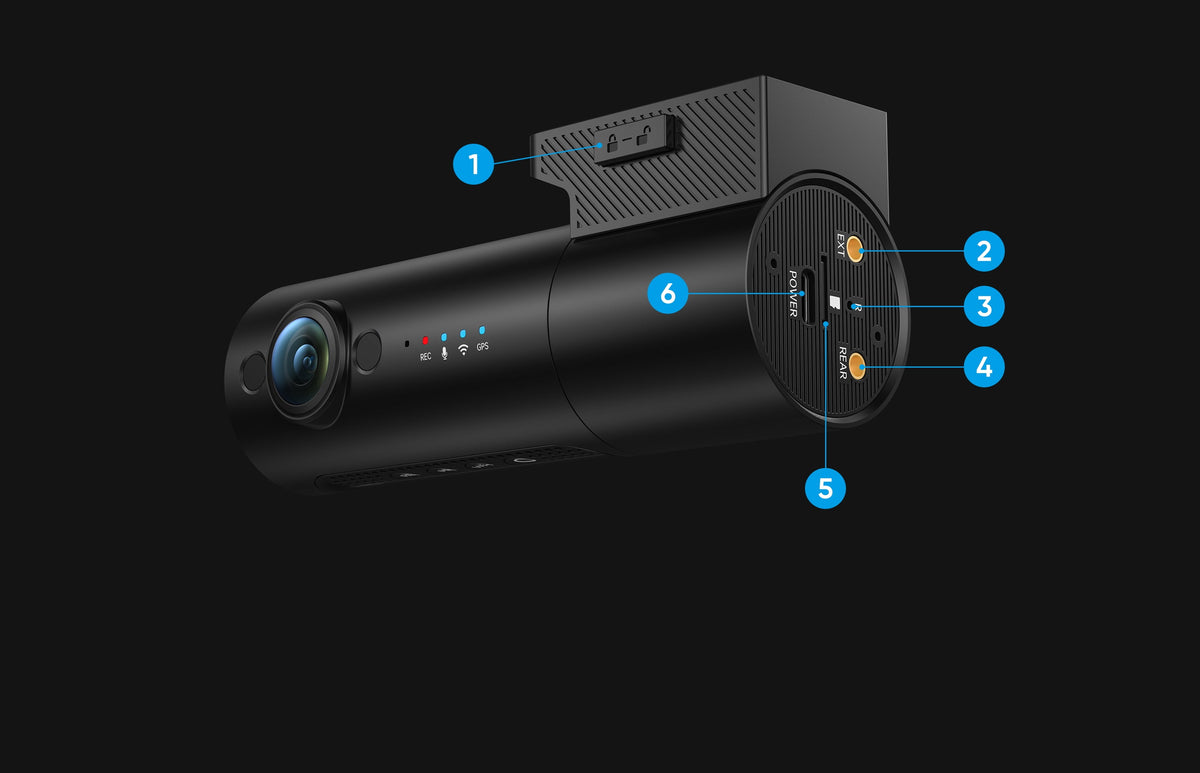

1 Bracket Release Button. 2 Telephoto Camera Port or Waterproof Rear Camera Port. 3 Reboot Pinhole. 4 Rear Camera Port or Waterproof Rear Camera Port. 5 Memory Card Slot. 6 USB Power Port.

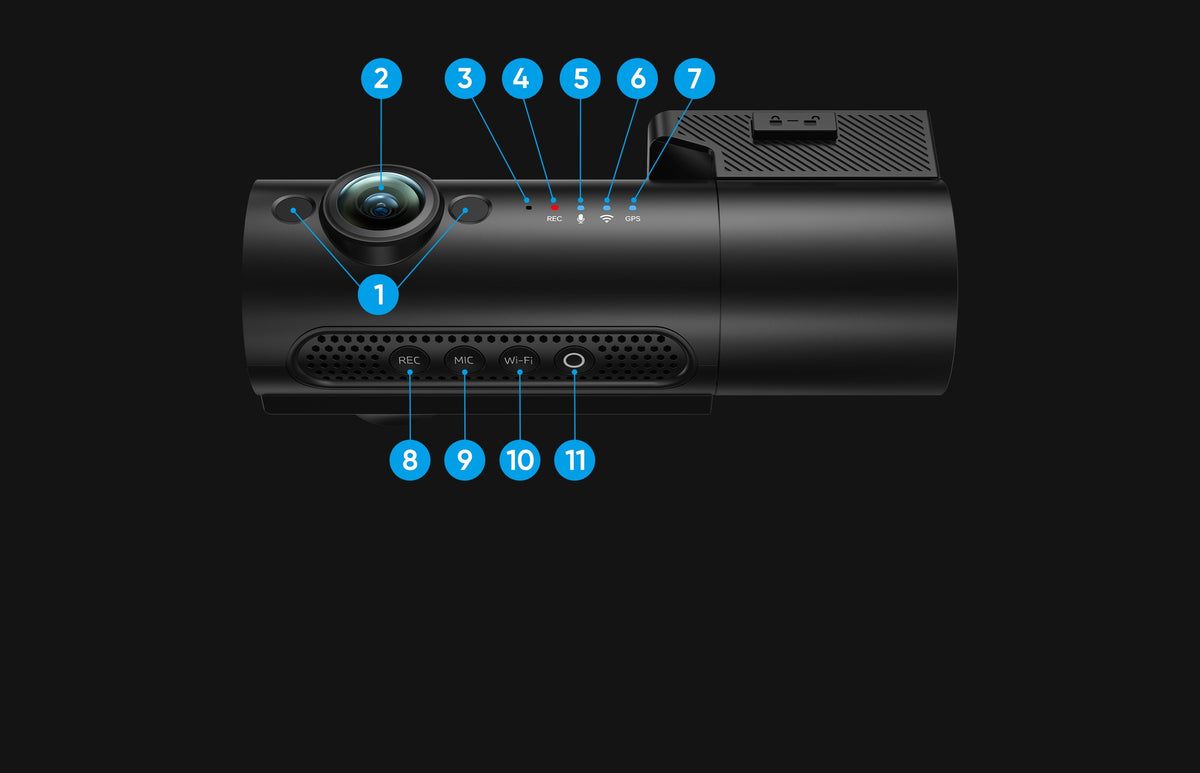

1 Infrared LEDs. 2 Cabin Camera Lens. 3 Microphone Hole. 4 Recording Status Indicator. 5 Microphone Status Indicator. 6 Wi-Fi Status Indicator. 7 GPS Status Indicator. 8 Recording Start / Stop. 9 Microphone On / Off. 10 Wi-Fi On / Off. 11 Custom Button.

VIOFO Packing List for the T340TW 4CH

• Main Unit (Front + Cabin Cameras) x 1
• Telephoto Camera x 1
• Waterproof Rear Camera x 1
• Car Charger x 1 (Length: 3.5 m)
• Telephoto Camera Cable x 1 (Length: 1 m)
• Rear Camera Cable x 1 (Length: 2.5 m / 7.5 m / 9.5 m / 14.5 m)
• Type-C Data Cable x 1 (Length: 0.5 m)
• Front Camera CPL x 1
• Infrared Cabin Camera Cover x 1
• Tamper-Resistant Cover x 1
• Waterproof Rear Camera Screws x 2
• Tamper-Resistant Cover Screws x 4
• Hex Key x 1
• Trim Removal Tool x 1
• Spare Mount Sticky Pads (Set) x 1
• Windshield Static Stickers x 3
• Warning Sticker x 1
• User Manual x 1
• Quick Start Guide x 1
• After-Sales Service Card x 1
