WOLFBOX X5 3-CH Front + Rear + Cabin Mini Dash Cam - 4K, 2.5K + 1080p, STARVIS 2, 5.8GHz Wi-Fi

Put the Road Ahead, the Road Behind and the Back Seat on One Card. The WOLFBOX X5 3-Channel Mini Dash Cam Records 4K Front, 2.5K Rear and 1080p Cabin Video

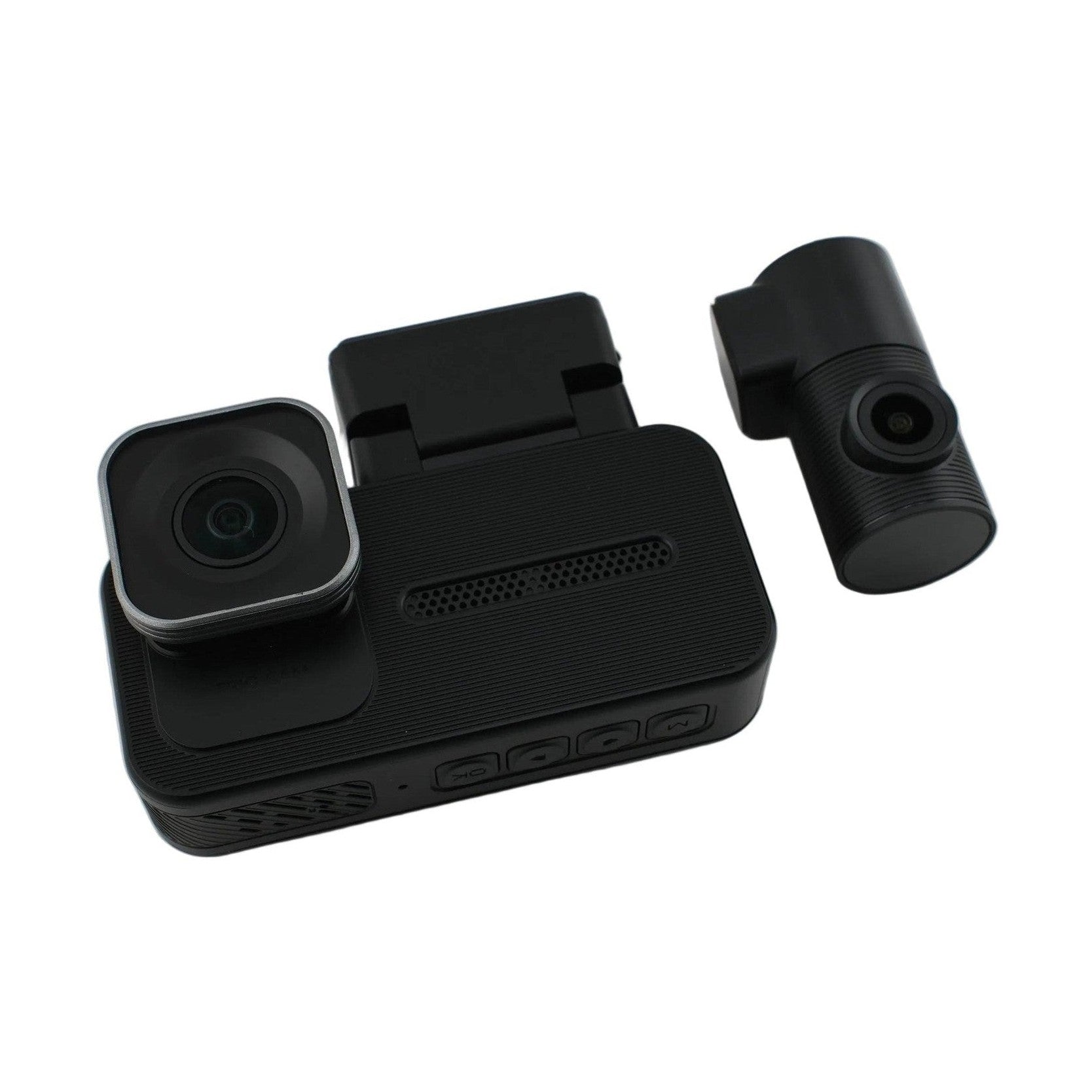

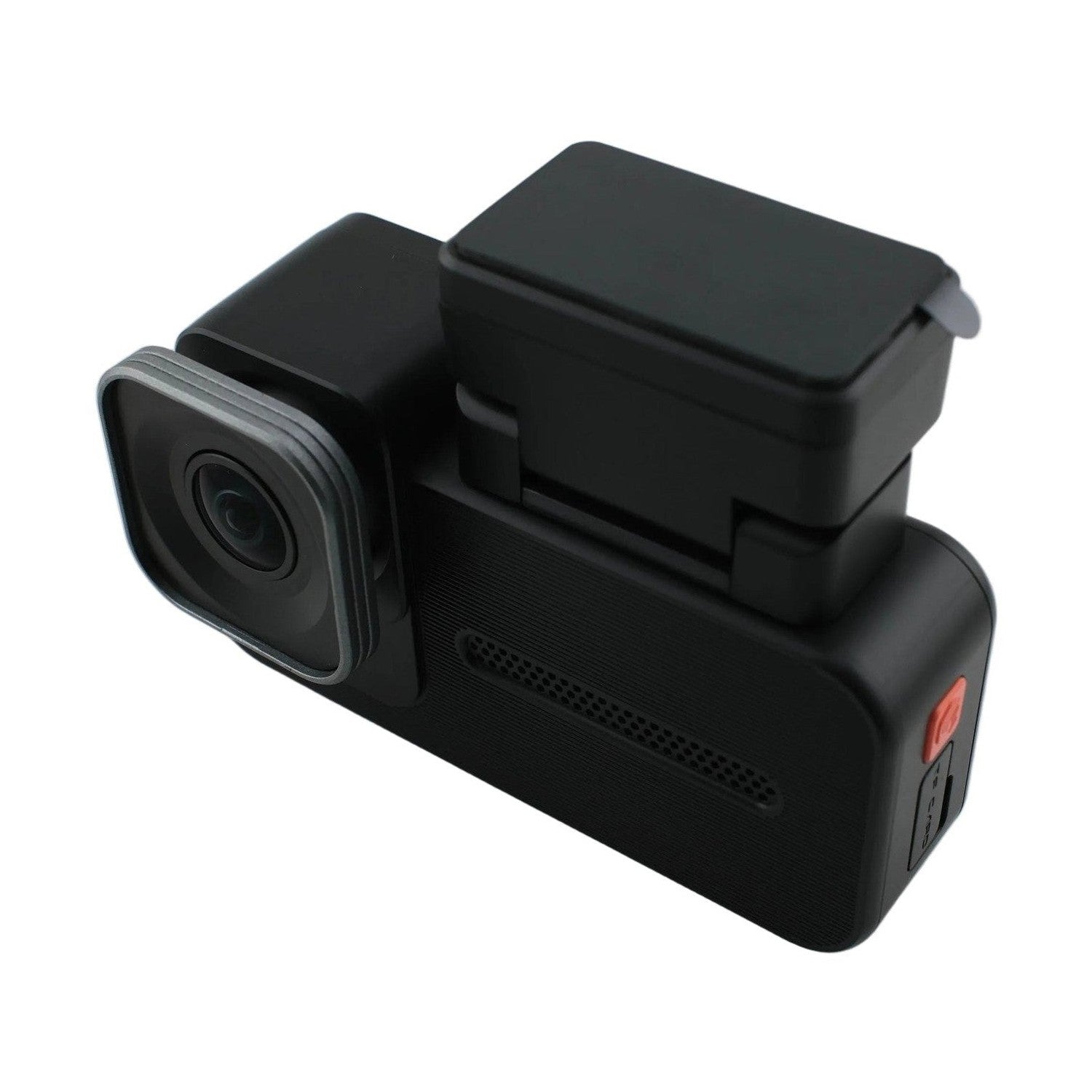

Getting the inside of the car on record usually means more hardware: a separate cabin camera on its own cable, or a 12-inch mirror strapped over the one you already have. The WOLFBOX X5 builds the cabin camera into the main unit instead. One small camera behind your mirror records the road ahead in 4K and the cabin in 1080p, and a compact rear camera on the back glass records the road behind in 2.5K.

Want the full rundown before you buy? Read our hands-on WOLFBOX X5 review.

Trusted AU store: We're an authorised Australian reseller, shipping from Melbourne within 24 hours^*. You get an 18-month warranty with no product registration required, local technical support, and our 30-Day No-Worries returns.

Who This Isn't For: If nobody rides with you, the cabin camera goes unused, and the WOLFBOX X3 trades it for 60fps and driver alerts (ADAS). For a separate cabin camera you can aim on its own, look at the VIOFO A229 Pro 3CH, and the WOLFBOX i07 is the entry-level three-channel option. The X5 suits drivers who want three views from one small camera.

DCG Highlights

What We Love

• The cabin camera is built into the main unit, so you get three channels with only one camera cable to run to the back of the car

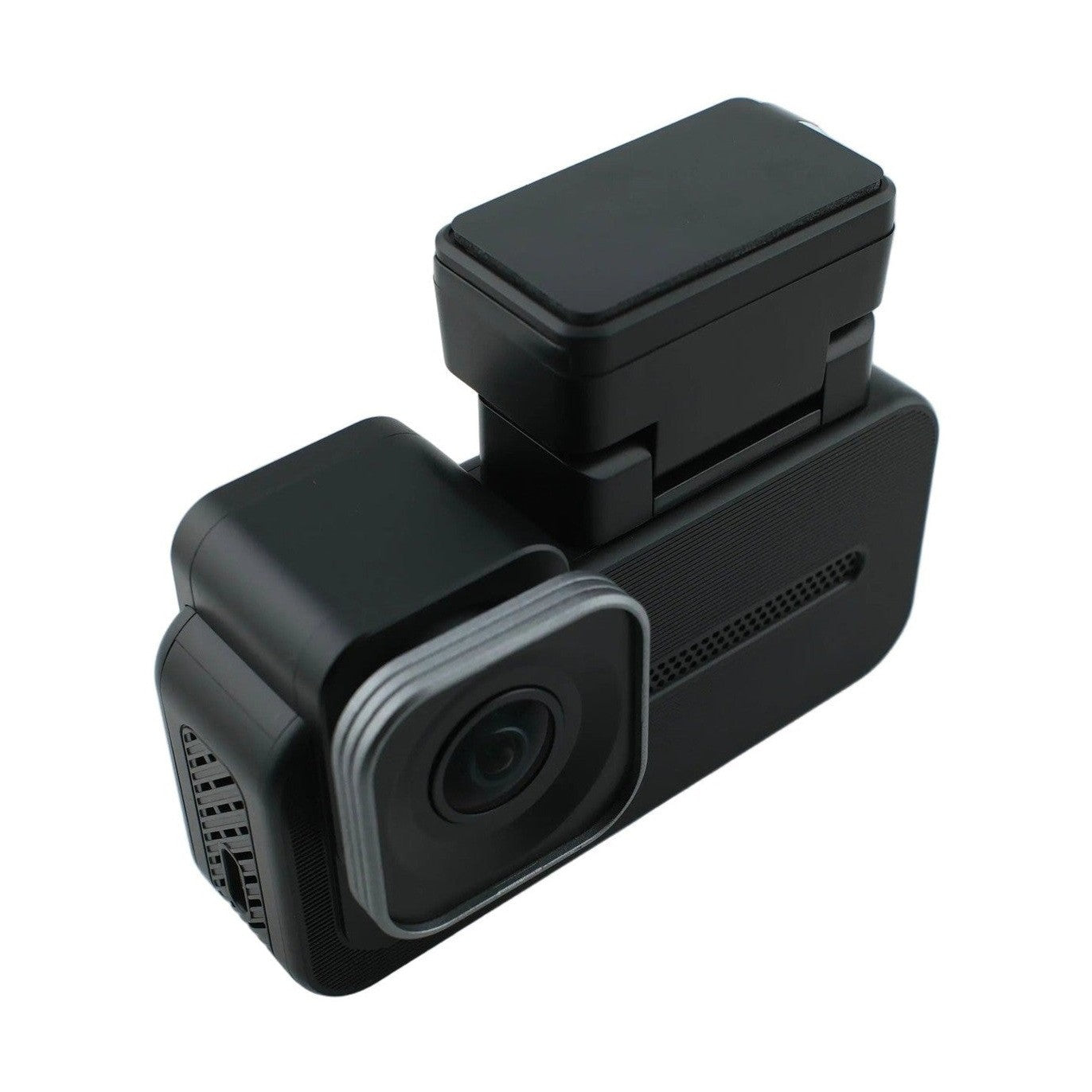

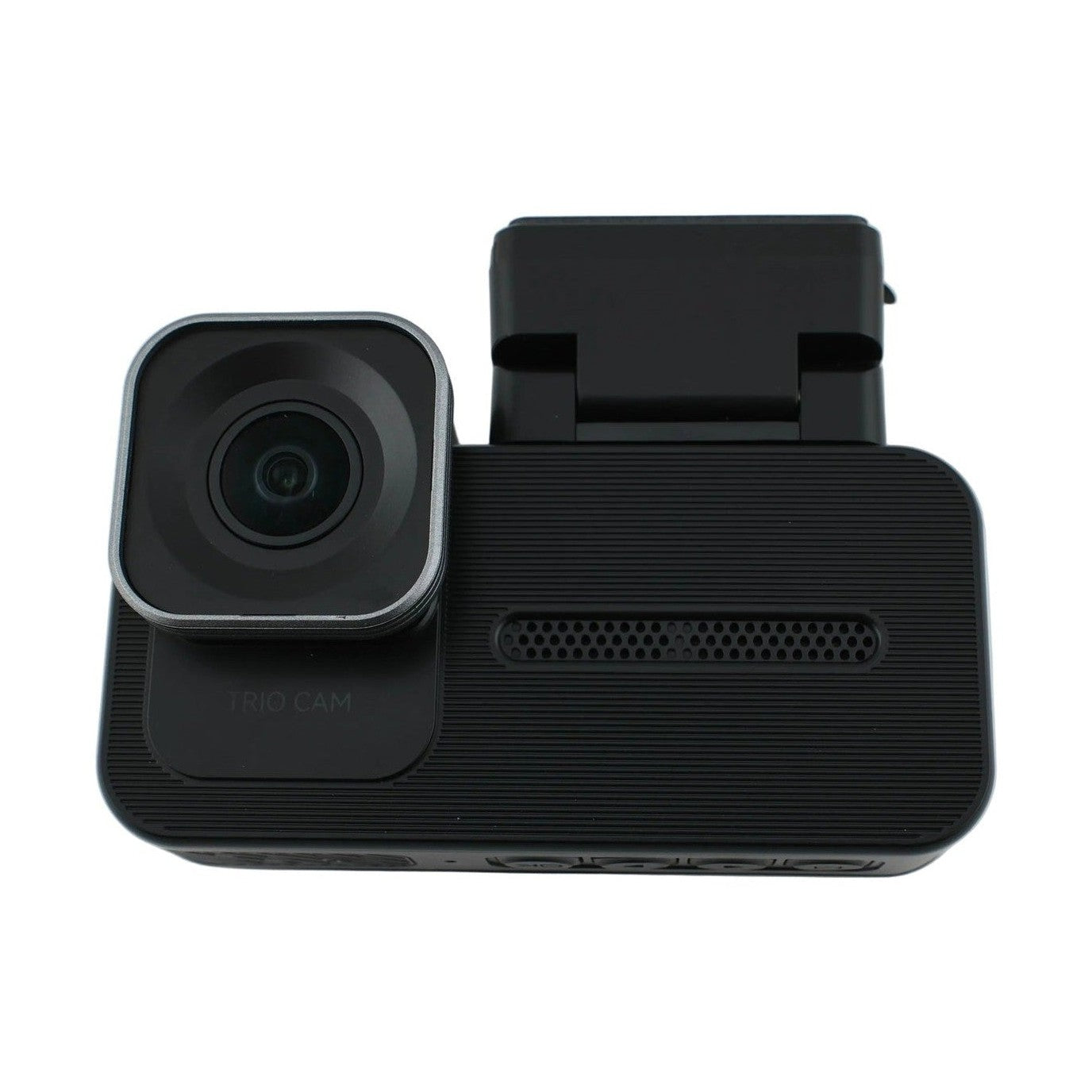

• A Sony STARVIS 2 IMX678 front sensor recording 4K at 30fps with HDR, which keeps number plates readable against headlights and after dark
• The front records 4K while the rear and cabin cameras run at the same time, so you are not trading road detail for the cabin view
• Infrared lighting for the cabin camera, so the back seat stays on record at night without a visible light in anyone's eyes
• Dual-band 5.8GHz and 2.4GHz Wi-Fi to the WOLFBOX app, so a clip reaches your phone without pulling the card
• GPS built into the mount and 12 voice commands, so every clip carries speed and location and you can lock one without taking your hands off the wheel
• A supercapacitor instead of a battery, which copes with the heat of a parked Australian car far better than lithium cells do

Good to Know

• Parking mode needs constant power from the WOLFBOX hardwire kit or the WOLFBOX OBD kit, sold separately. The 4A kits for the G900 mirrors are not the ones you want.
• The cabin camera is fixed in the main unit, so it views the cabin from the windscreen and cannot be aimed separately. Front headrests can hide part of the back row.
• WOLFBOX publishes no waterproof rating for the rear camera, and the manual mounts it inside on the rear glass. Its cable is about 6 metres, and WOLFBOX says not to splice it to extend it, so measure a long wagon or van first.
• If you drive rideshare in Victoria or Queensland, transport rules restrict cameras that record inside the car, so read our guide to rideshare dash cam laws in Australia before you use the cabin camera for work.

Why Does a Built-In Cabin Camera Matter?

A built-in cabin camera gives you the inside of the car on record without a third camera to mount and wire. Most three-channel dash cams add the cabin view as a separate module on a short cable, or build all three cameras into a mirror that replaces the view you already have.

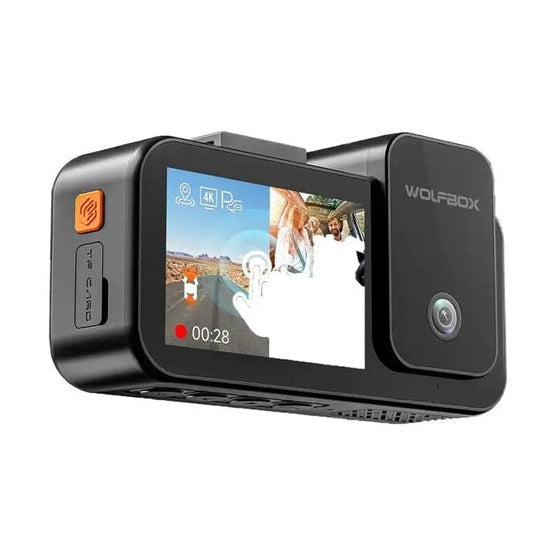

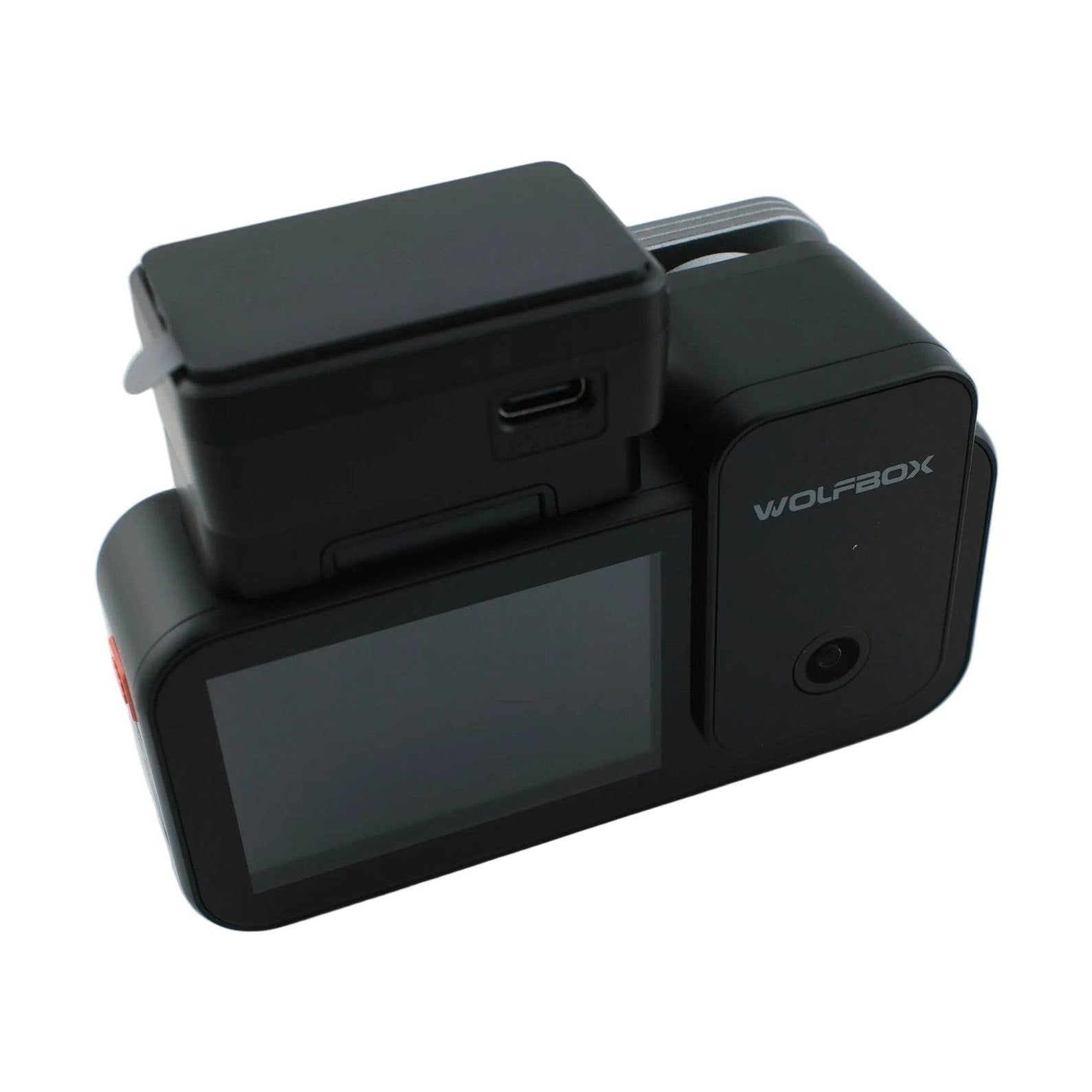

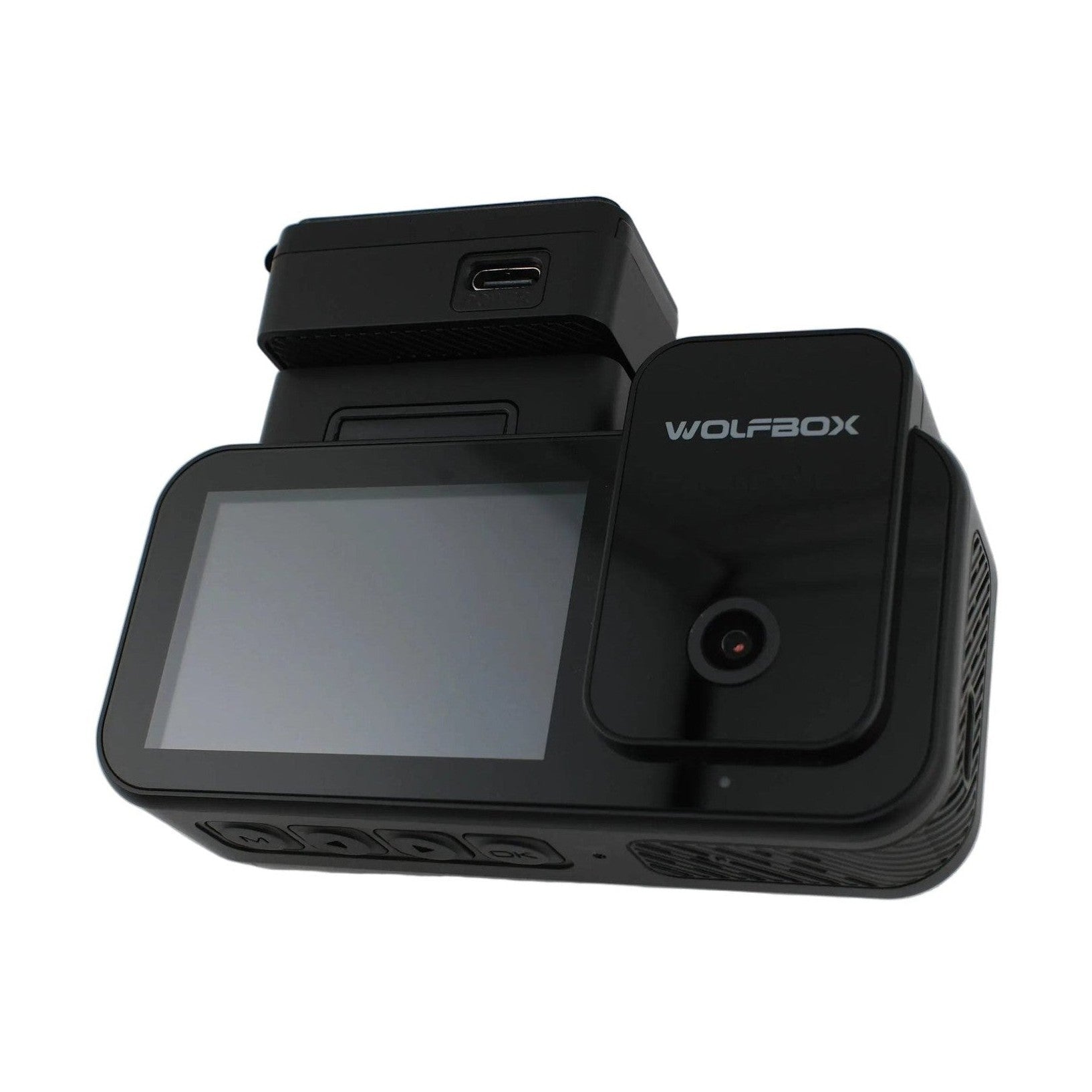

The WOLFBOX X5 puts the inside camera in the same small body as the 4K front camera, facing back into the car, and you switch it on or off with the Internal Recording setting. That covers the moments a front and rear camera cannot: a passenger dispute, a learner driver's lesson, or what happened in a work vehicle someone else was driving. The trade-off is position and detail. The cabin camera records 1080p at 25fps from the windscreen, so it shows people and actions clearly rather than fine detail, and you cannot move it closer to the back seat. If you carry passengers for Uber or DiDi, Victoria and Queensland transport rules restrict cameras that record inside rideshare cars, as our rideshare dash cam laws guide explains.

Top Benefits

• The whole trip on one card: Front, rear and cabin record together, so there is no gap between what happened outside and inside.
• A tidier windscreen: The cabin camera lives in the main unit, so there is no third camera or cable to hide.
• Sharper front evidence: The 4K STARVIS 2 IMX678 front camera holds plate detail day and night.
• Clips on your phone: 5.8GHz Wi-Fi moves a clip to the WOLFBOX app without pulling the card.
• Hands-free control: Say "lock the video" or "take picture" and the camera does it.
• Parked protection: With a hardwire kit, parking mode records on impact or in time-lapse and stops before your battery drops below 12V.

How Does the WOLFBOX X5 Install?

1. Clip the GPS mount fully onto the camera, then stick it to the windscreen behind the mirror using the electrostatic sticker and adhesive pad, with the cabin camera facing into the car.
2. Run the power cable along the headlining and down the A-pillar with the included trim tool, to the 12V socket or to a WOLFBOX hardwire kit if you want parking mode.

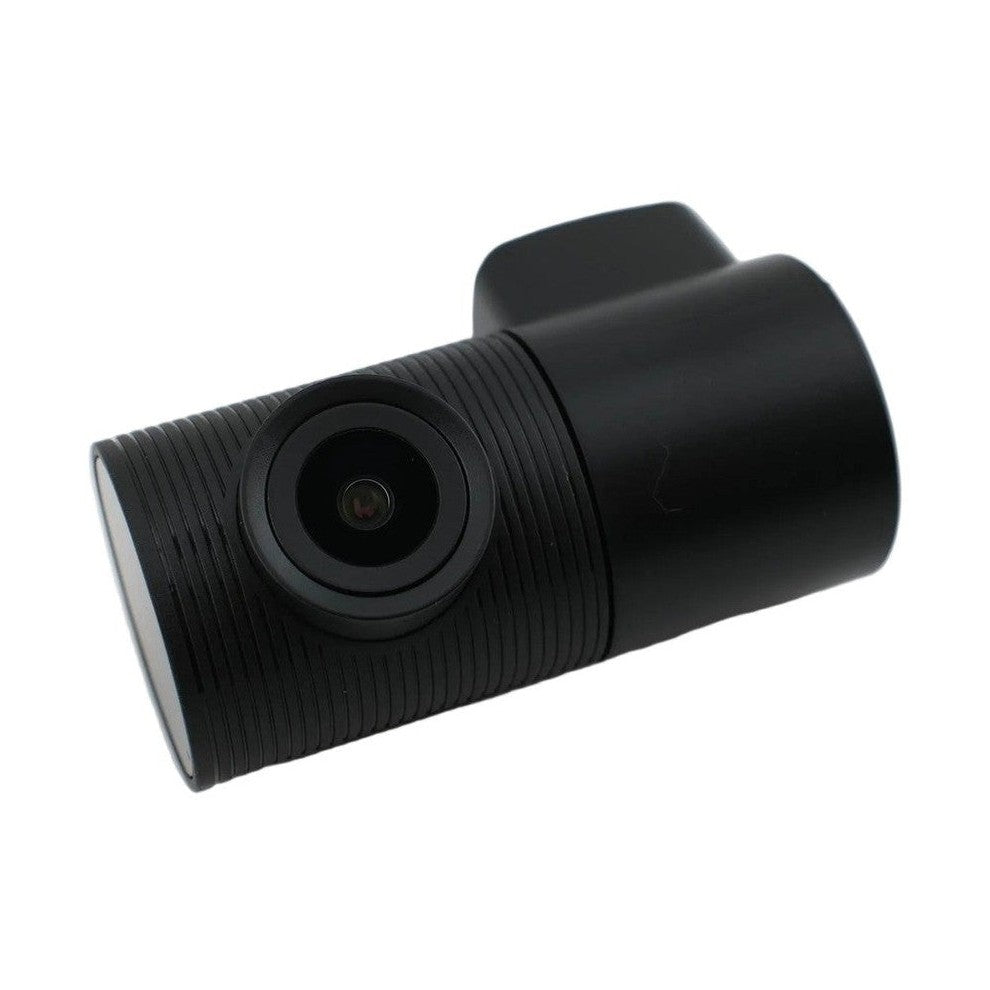

3. Clean the rear glass, fix the rear camera inside it on an electrostatic sticker, and run its 6-metre cable along the headlining to the rear camera port on the main unit.
4. Insert the 128GB card and format it in the camera, set Mirror Flip or Rear Cam Flip if the rear image needs it, then connect the WOLFBOX app.

The main unit is small enough that most of the job is hiding the rear cable. If the camera will not power on, check that the GPS mount is clicked fully home, because WOLFBOX notes that is the usual cause.

What's in the Box?

• WOLFBOX X5 dash cam with built-in cabin camera
• GPS mount
• 2.5K rear camera with 6m (20ft) rear camera cable
• Car charger with 3.5m (11.5ft) power cable
• 128GB microSD card
• 2 adhesive pads and 2 electrostatic stickers
• Trim tool, 5 cable clips and a lens cloth
• User manual and quick guide
• Not included: hardwire kit, CPL filter

Add Yours Today

Pair it with the WOLFBOX hardwire kit for parking mode, or the WOLFBOX OBD hardwire kit if you would rather not touch the fuse box, and step up to a 256GB WOLFBOX card if you run parking mode. We ship from Melbourne^*, backed by our 30-Day No-Worries returns. We do not install cameras ourselves, but you can find someone local in our directory of independent installers. They are independent businesses, so you book and contract directly with them.
